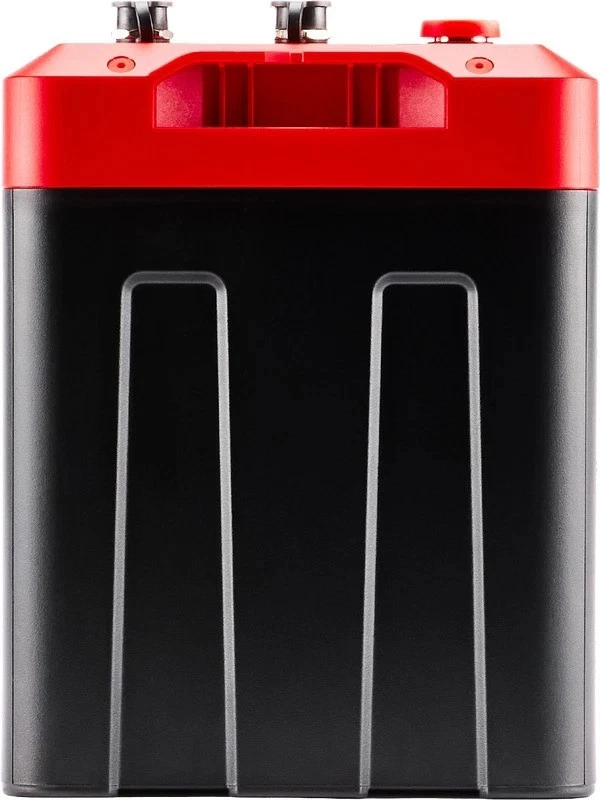

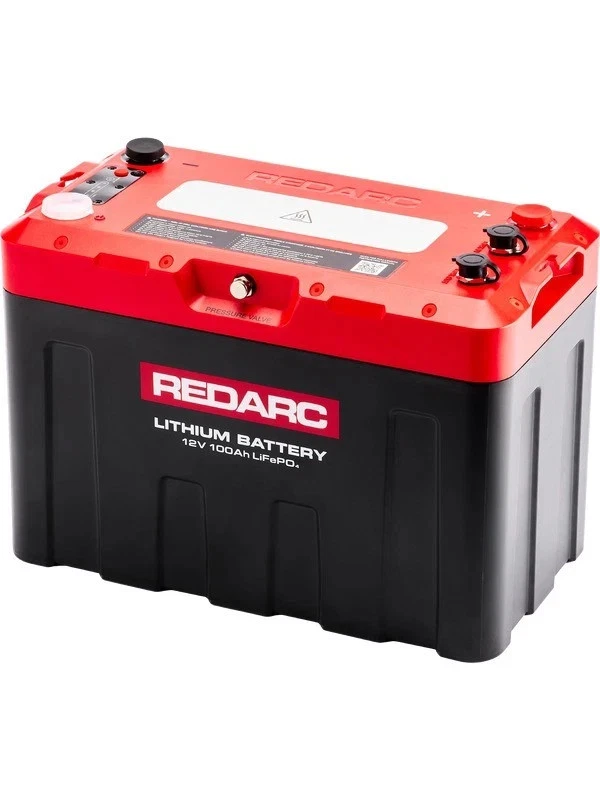

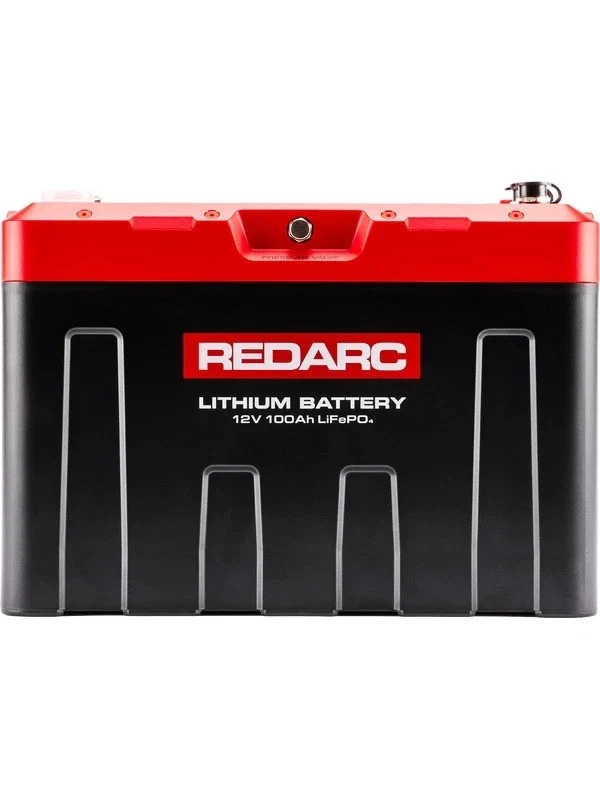

REDARC REDLAB Icon100 100Ah Lithium Battery – LBATN12100

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

Built for serious 4WD, caravan, RV, camping and off-grid applications, the REDARC REDLAB Icon100 is a premium 100Ah lithium battery designed to deliver outstanding power, durability and safety in demanding Australian conditions.

With 100Ah of usable capacity, rugged IP67 construction, high charge and discharge capability, internal heating for below-zero charging and advanced built-in safety features, the REDLAB Icon100 is designed to keep your electrical system powered wherever the trip takes you.

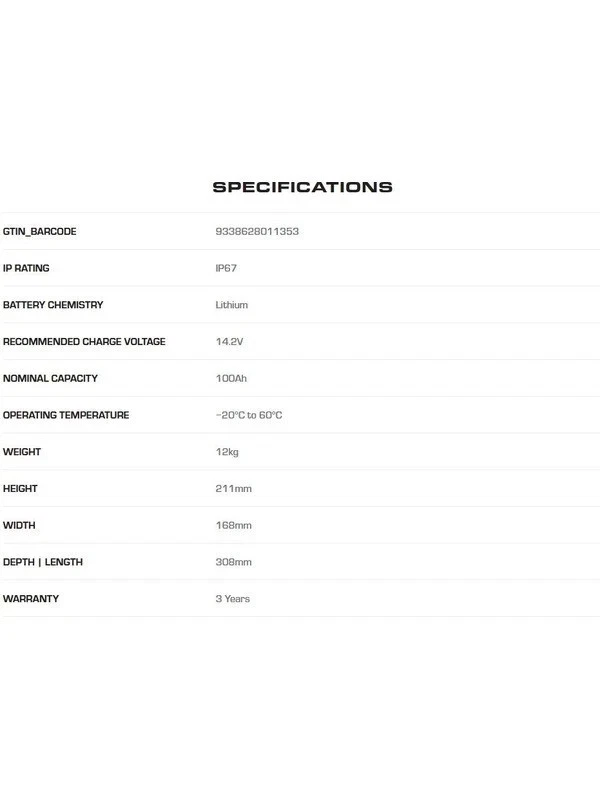

PRODUCT DETAILS

Brand:REDARC
Range:REDLAB Icon
Model:Icon100
Part Number:LBATN12100
Voltage:12V
Battery Chemistry:LiFePO4 Lithium
Nominal Capacity:100Ah
Usable Capacity:100Ah
Maximum Charge Current:100A
Continuous Discharge Current:100A
IP Rating:IP67
Operating Temperature:-20°C to 60°C
Weight:12kg
Dimensions:308mm L x 168mm W x 211mm H
Warranty:3 Years

BUILT FOR SERIOUS OFF-GRID POWER

The REDLAB Icon range has been developed for demanding 4WD, caravan, RV, outdoor and off-grid power systems.

The Icon100 combines high-current performance with a compact and lightweight design, allowing powerful chargers and inverters to be operated from fewer batteries.

With 100% usable capacity and high charge and discharge rates, it delivers serious power without the weight and bulk associated with traditional battery systems.

KEY FEATURES

100Ah LiFePO4 lithium battery capacity
100% usable battery capacity
High 100A charge current
100A continuous discharge current
Compatible with high-current battery chargers and inverters
IP67 rated for excellent water and dust protection
Vibration-proof construction suitable for demanding installations
Suitable for unsealed and exterior mounting applications
6000+ charge cycles

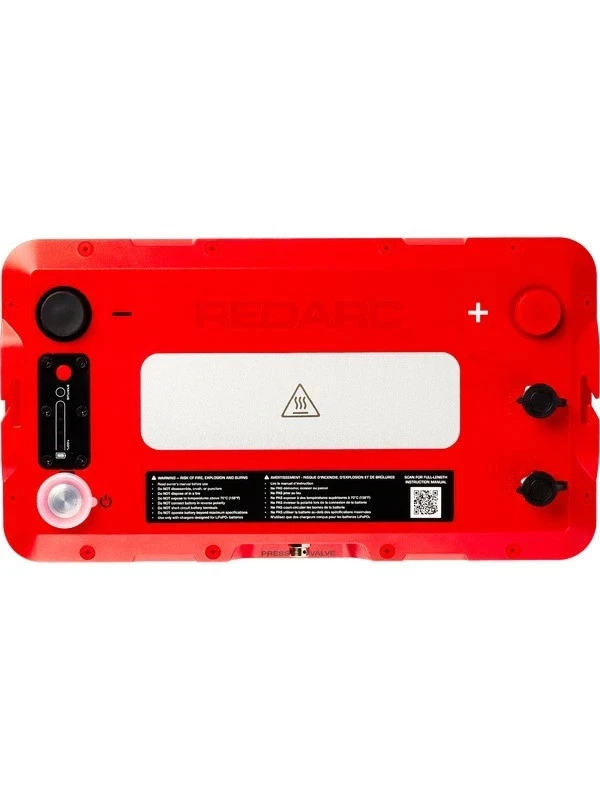

Built-in state-of-charge display
Display indicates battery faults and operating status
Internal heating for charging in below-zero conditions
Integrated battery isolation switch
Isolation switch can isolate the battery terminals, clear faults and reset the battery
Series and parallel compatible
Up to 4 batteries can be connected in parallel
Up to 2 batteries can be connected in series for 24V applications
Designed for seamless compatibility with REDARC battery chargers and inverters
Independently verified to IEC 62619:2022
Suitable for use in AS/NZS 3001.2:2022 compliant installations

IMPORTANT INSTALLATION NOTE

THIS BATTERY IS NOT UNDER-BONNET RATED AND MUST NOT BE INSTALLED IN AN ENGINE BAY OR UNDER-BONNET LOCATION.

The REDARC REDLAB Icon lithium battery range is designed for suitable non-under-bonnet installations only. Always install the battery in accordance with REDARC’s installation requirements and guidelines.

DESIGNED TO WORK WITH REDARC POWER SYSTEMS

The REDLAB Icon range is designed to integrate seamlessly with REDARC charging and power management equipment, including REDARC BCDC chargers and Manager systems.

This makes the Icon100 an excellent choice for 4WDs, caravans, camper trailers, motorhomes, RVs, touring vehicles, work vehicles and off-grid power systems.

REDLAB ICON RANGE – OTHER SIZES AVAILABLE

We stock the REDARC REDLAB Icon range in three capacities:

100Ah – Icon100

Part Number:LBATN12100

200Ah – Icon200

Part Number:LBATN12200

300Ah – Icon300

Part Number:LBATN12300

Please see our other listings for the 200Ah and 300Ah REDLAB Icon batteries.

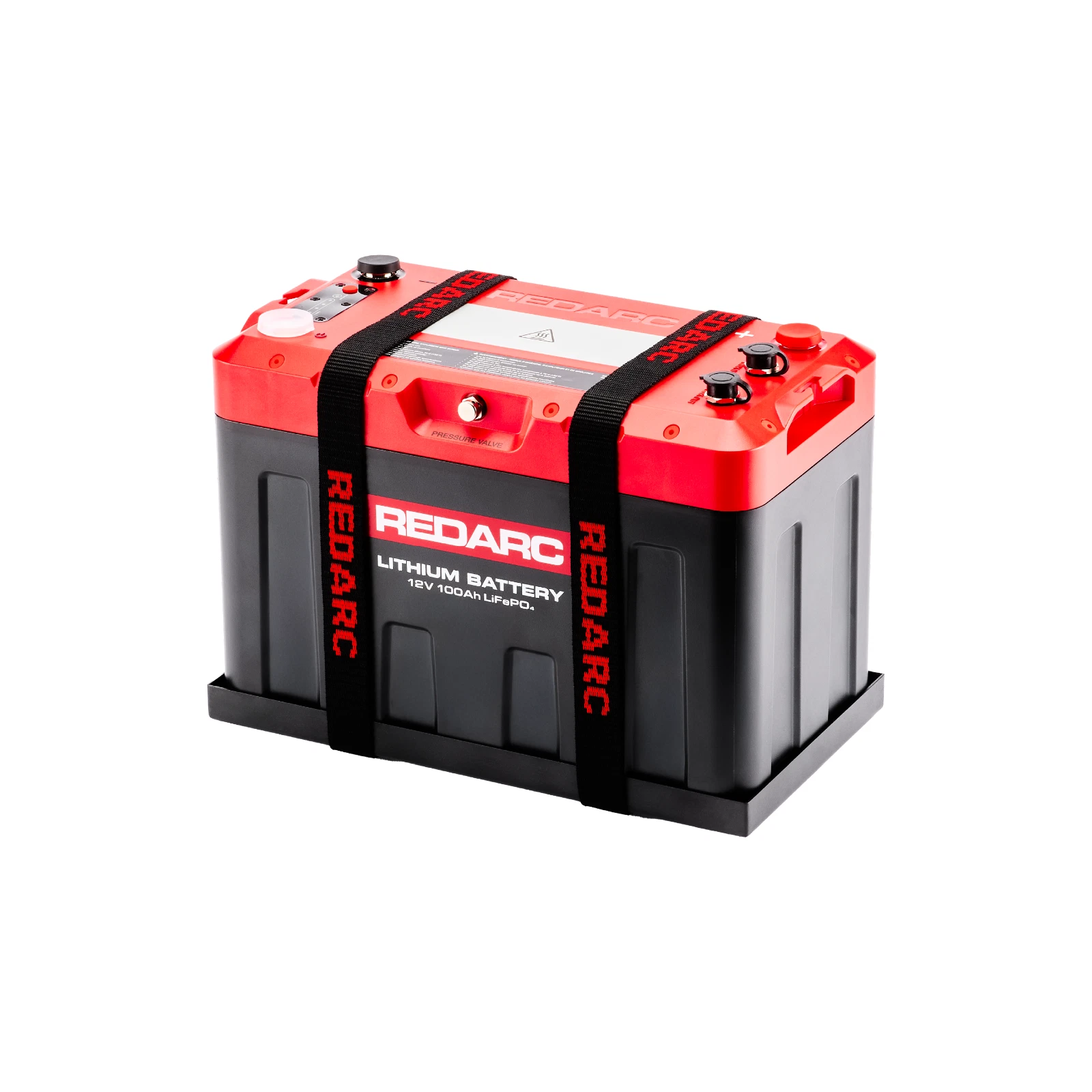

BATTERY MOUNTING TRAYS ALSO AVAILABLE

PLEASE NOTE: BATTERY TRAY IS NOT INCLUDED WITH THIS LISTING.

Purpose-built REDARC mounting trays are available separately in our store for all three REDLAB Icon battery sizes.

100Ah Battery Tray: LBATN12100-MB
200Ah Battery Tray: LBATN12200-MB
300Ah Battery Tray: LBATN12300-MB

Please see our other listings for the correct battery mounting tray for your battery.

WHAT’S INCLUDED

1 x REDARC REDLAB Icon100 12V 100Ah Lithium Battery – LBATN12100

Battery tray, charger, wiring and other accessories shown or referred to are not included unless specifically stated.

IMPORTANT SHIPPING INFORMATION

Due to the size and classification of lithium batteries, this item cannot be shipped to a PO Box or Parcel Locker.

Please ensure a suitable physical delivery address is supplied when purchasing.

WHY CHOOSE REDARC REDLAB ICON?

The REDLAB Icon range combines high usable capacity, serious charge and discharge capability, rugged IP67 construction and advanced integrated battery management features in a package designed specifically for demanding touring and off-grid applications.

Whether you’re powering a 4WD touring setup, caravan, camper or complete off-grid electrical system, the REDLAB Icon100 is built to provide reliable power when you need it.
