Intelli-Volt 12V 30A Low Voltage Disconnect

PART NO. LVD30

The ideal solution for protecting expensive deep cycle batteries from over-discharge. Automatically disconnects the load when the LVD detects the voltage has dropped to the disconnection point, ideal for 4WDs, camper trailers and smaller caravan applications.

FEATURES

Battery protection
Prevents damaging the battery through over-discharge

Adjustable disconnect point
Set the disconnect voltage to best suit the application

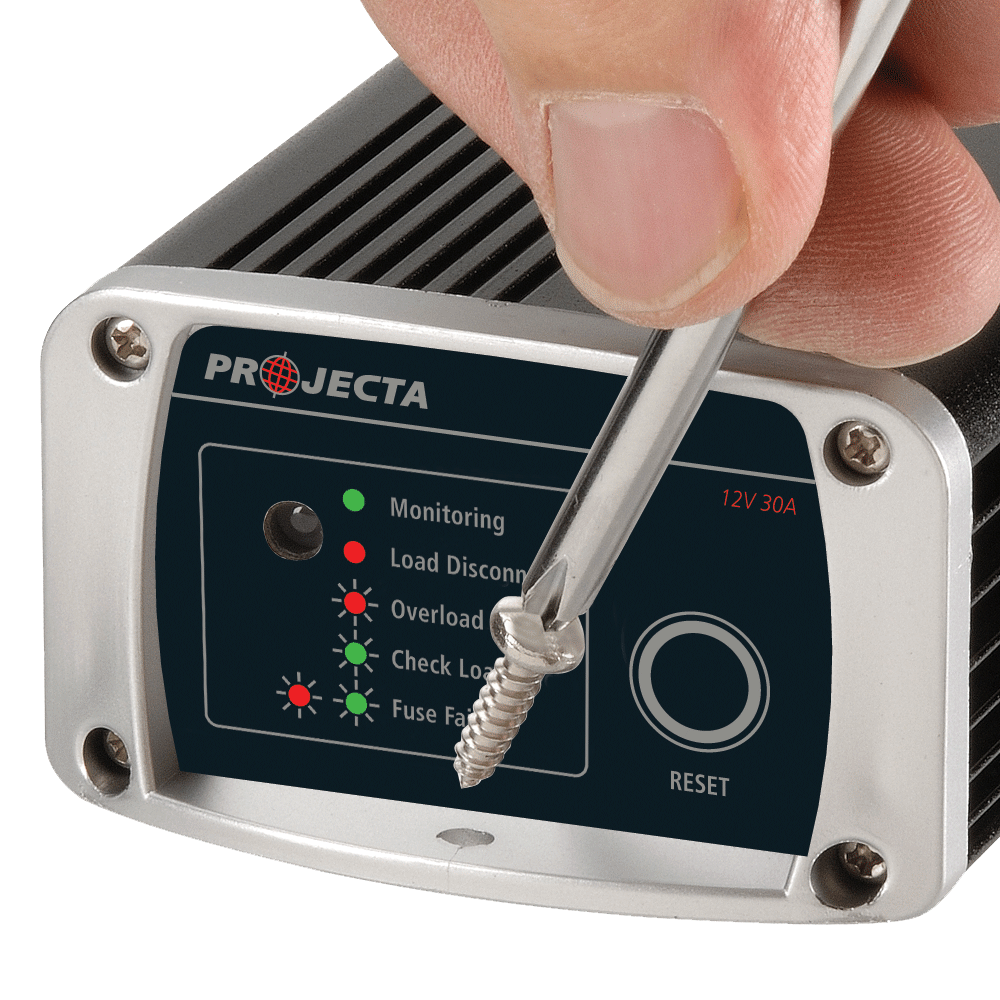

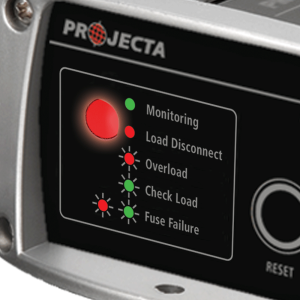

L.E.D status indicator
Multi-colour L.E.D indicates connection status of LVD

Vibration and weather proof
Potted electronics prevent dust and water ingress (IP65)

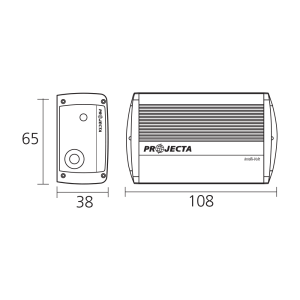

Compact size
Robust mounting points and compact size permit easy fitment

SPECIFICATIONS
PART NO: LVD30
INPUT VOLTAGE: 10–16V
OUTPUT CURRENT: 30A
CONTROL TYPE: MOSFET
DISCONNECT VOLTAGE SETPOINTS: 10.0V, 10.5V, 11.0V, 12.0V
CUT-OUT DELAY: 1 minute
RECONNECT VOLTAGE: 13.0V
FUSE PROTECTED: 30A (1 x 30A)
REVERSE POLARITY: Built-in
THERMAL CUTOUT: 65°C
ENVIRONMENTAL PROTECTION: P65
CURRENT DRAW: 10mA
