PROJECTA IDC25 DUAL BATTERY SYSTEM DC TO DC CHARGER MPPT SOLAR + Install Kit

The Projecta IDC25 Dual Battery Charger is a must have for anyone looking to install a second battery in their vehicle, camper or caravan. Suitable for vehicles with smart alternators or standard the IDC25 also includes solar charging option.

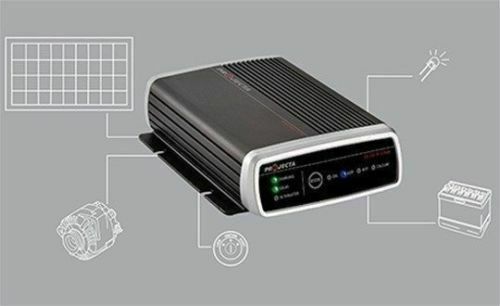

Charging can be via alternator, solar or simultaneous maximising your charge time. Solar charging offers MPPT technology (Maximum Power Point Tracking) maximising the power generated from your solar panels to your battery.
Alternator or solar charging has up to a huge 25 Amp output, 3 stage charge, pre-wired with a tough marine grade alloy housing and resin set circuit board protecting the IDC25 from the harsh environment. Extra features include high operating temperature up to 80°C, shock, dust and water resistant IP67 rating, mountable in engine bay or near your second battery. All covered by a 2 year manufactures warranty. BATTERY TYPES SUITED – Wet, Calcium, AGM and Gel *Version 4 – V04 Stock

• Ideal for Smart Alternator Vehicles
• Charge your Second Battery From Alternator or Solar Panels
• MPPT Solar Controller
• Works Under Extreme Heat Conditions
• IP67 Waterproof
• 2 Year Warranty

Technical Specifications
Part Number: IDC25
Alternater input Voltage: 9-32Vdc
Max Solar Input: 23Vdc, 385W
Bttery Capacity: 75-300Ah
Battery Types Supported: Gel, AGM, Wet & Calcium
Operating Temperature: -10C° to +80C°

PACKAGE INCLUDES

• PROJECT IDC25
• 2 MTRS 8 B&S NEG CABLE (black）
• 6 MTRS 8 B&S POSITIVE CABLE（red）
• X4 10-8 Cable lugs
• X4 Cable joiners
• X4 Heatshrink
• x10 Cable ties
