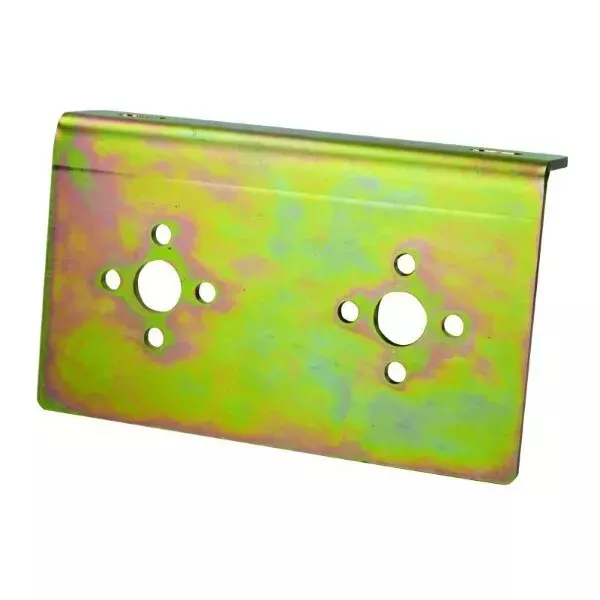

Mounting Bracket And Dual 75910 MASTER Isolators Battery And Starter switches

Specs:

195mm long x 119mm high x 43 wide (mounting lip) x 5mm thick.

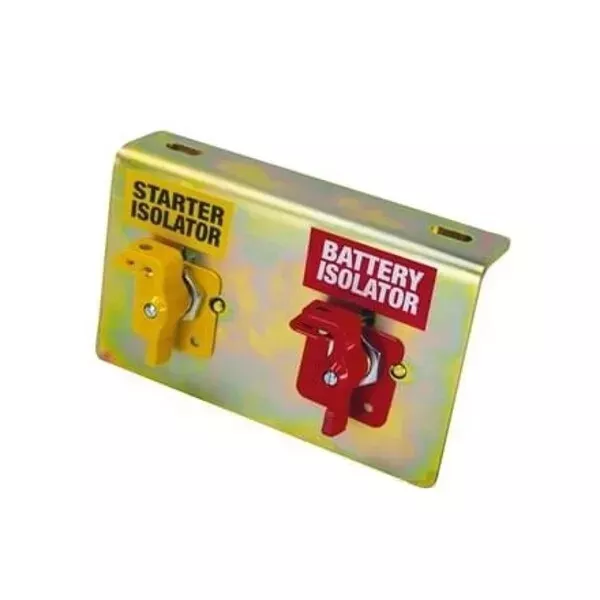

Please Note: This listing is for the mounting bracket and x2 switches, one red lockout lever and one yellow

We sell both the Red and Yellow Lockout lever kits, switches and the mounting bracket by itself in our store.

BATTERY MASTER SWITCH WITH YELLOW LOCKOUT LEVER (KIT) COPPER

Part Number: SW6909YK

Additional Information

Jaylec Battery Master Switch with Yellow Lockout Kit 6 – 36 Volt
2 Position – Off/On, Double Pole Single Throw (DSPT)
1,000amp Intermittent, 125amp Continuous Rating on Battery Terminals – Large Studs
20amp Continuous Rating on Field Terminals – Small Studs
Chrome plated Diecast Alloy Lever Actuator, Brass Mounting Stem with weather resistant Twin O-Ring seal
Copper Laminated Contacts and Plated Steel casing

Specifications

Voltage: 6 – 36 VOLT
Amps: 1000
Function: ON / OFF
Number of Terminals: 4
Number of Positions: 2
Contact Configuration: DPST

BATTERY MASTER SWITCH WITH RED LOCKOUT LEVER (KIT) COPPER

Part Number: SW6909RK

Additional Information

Jaylec Battery Master Switch with Red Lockout Kit 6 – 36 Volt
2 Position – Off/On, Double Pole Single Throw (DSPT)
1,000amp Intermittent, 125amp Continuous Rating on Battery Terminals – Large Studs
20amp Continuous Rating on Field Terminals – Small Studs
Chrome plated Diecast Alloy Lever Actuator, Brass Mounting Stem with weather resistant Twin O-Ring seal
Copper Laminated Contacts and Plated Steel casing

Specifications

Voltage: 6 – 36 VOLT
Amps: 1000
Function: ON / OFF
Number of Terminals: 4
Number of Postions: 2
Contact Configuration: DPST

*All pictures shown are for illustration purposes only. The actual colours may vary from those shown depending on the device you are using to view the product or the angle of the item is photographed. Actual products may vary due to product enhancements or updates. The listing should be referred to for the description of the product, any questions should be asked prior to purchase.
