Specification

For sealing flanges and surfaces with minimum joints up to max. 0.3 mm. Replacement for solid seals.

Low-strength
Easy to remove

100% seal
Gaps are filled completely, so that the resulting bonding provides protection against corrosion from friction and protection against rust.

Resistant to a large number of bases, gases, solvents, oils and fuels

Easy to drain residual product due to accordion bottle

Silicone and solvent-free

Notice
The following plastics can be affected in the event of prolonged exposure: ABS, celluloid, polystyrene, polycarbonate (Macrolon), PMMA (Plexiglas), polysulfone, SAN (lurane, Tyril), Vinidur, vulcanised fibre and painted surfaces.

Proof of Performance
NSF registered, class P1, reg. no. 151996

The usage instructions are recommendations based on the tests we have conducted and based on our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

Application

Application area
Automotive and commercial vehicle industry, metal and tool manufacturing, shipbuilding, machine and engine construction, electrical and electronics construction. Particularly suitable for applications in which good wetting is required, for instance on complicated cast parts, narrow bars and smooth surfaces.

Instructions

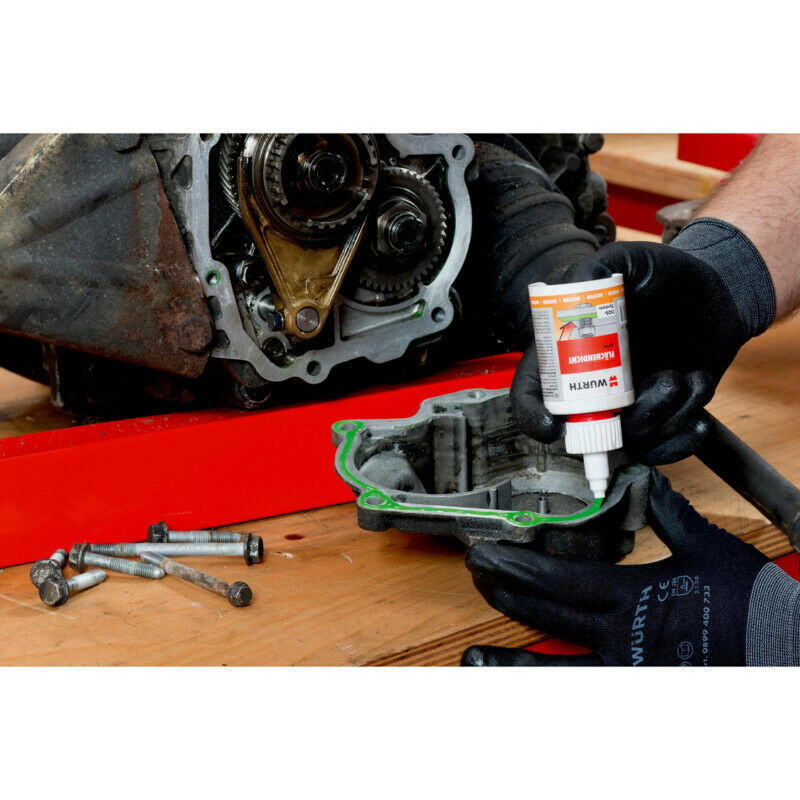

The surface must be free of oil, grease and other contaminants. The best adhesive results are achieved by first cleaning with metal cleaner 7063 (art. no. 0890107063). Observe flash-off time! Manually apply the product to the flange surface as a continuous bead or flat by screen printing. The flange should be closed tightly as soon as possible after joining, so that product does not build up and cause gaps. After assembly, the adhesive hardens to a viscoplastic. The cleaner the surface, the more secure the bonding. The green sealant cures anaerobically, meaning that it only hardens where the adhesive has no contact with atmospheric oxygen. At the same time, the hardening speed is still being influenced by the catalytic effect of metal and the gap width. Excessive adhesive that is pressed out of the gap between the two parts will not harden and can be removed with a dry cloth or a cloth saturated with acetone cleaner (art. no. 0893460).

Technical Information

Chemical basis: Dimethacrylic acid ester
Colour: Green
Min./max. viscosity 1: 55000-80000 mPas
Conditions for viscosity 1: at 25°C, Brookfield RVT, spindle 2/2.5 rpm
Min./max. viscosity 2: 15000-25000 mPas
Conditions for viscosity 2: at 25°C, Brookfield RVT, spindle 2/20 rpm
Density: 1.05 g/cm³
Min. flashing point: 100 °C
Min./max. initial strength: 15-30 min
Min./max. functional strength: 3-6 h
Min./max. final strength: 6-24 h
Min./max. breakaway torque: 8-10 Nm
Breakaway torque conditions: M10 mm
Min./max prevail torque: 3-5 Nm
Conditions for prevail torque: M10
Min./max. compressive shearing strength /conditions: 4-6 N/mm² / in accordance with DIN 54452
Min./max. tensile strength /conditions: 2-4 N/mm² / in accordance with ASTM D-2095
Min./max. shear strength: 2-4 N/mm²
Conditions for tensile shear strength: in accordance with ASTM D-950
Min./max. temperature conditions: -55 to 150 °C
Min./max. processing temperature: 5 to 35 °C
Shelf life from production/conditions: 12 Month / at room temperature
Weight of content: 50 g
