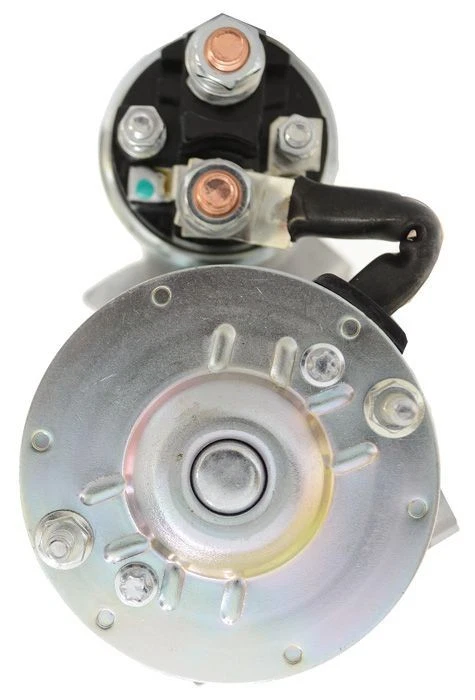

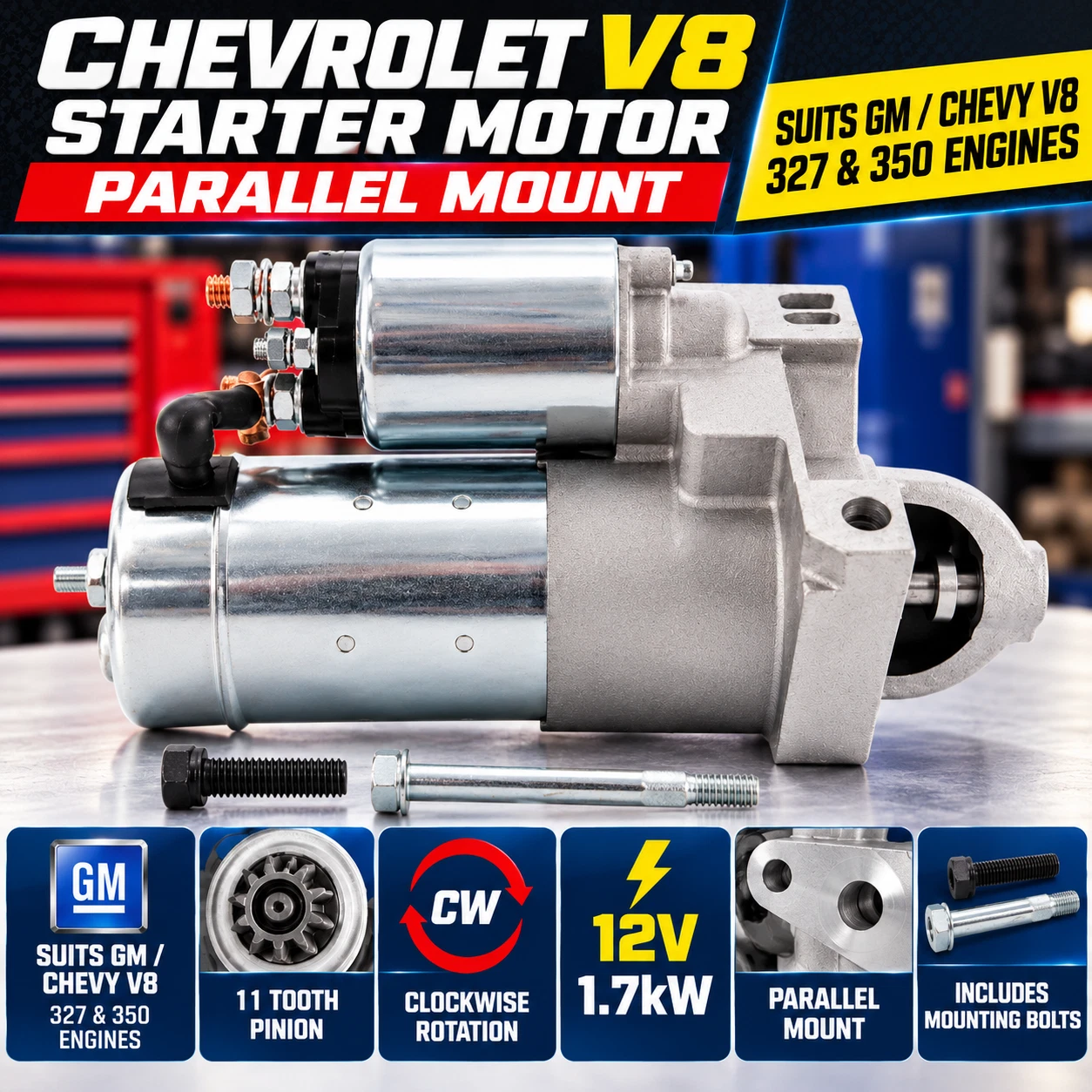

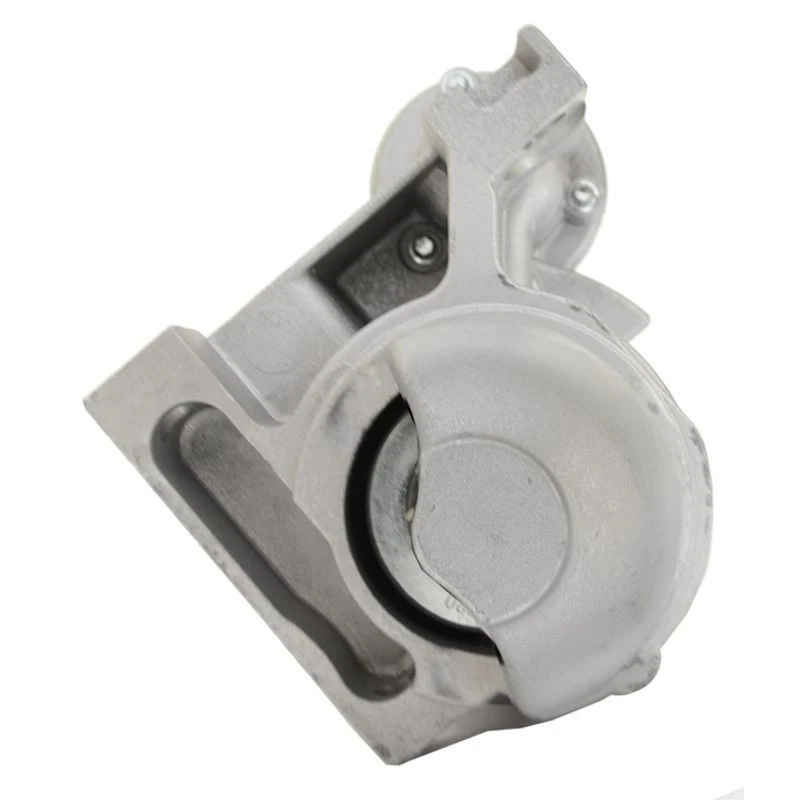

GM / CHEVROLET V8 HIGH TORQUE STARTER MOTOR
12V 1.7kW – 11 Tooth – Parallel Mount

Part Number: SND003
Brand: JAS Oceania

Quality 12V 1.7kW starter motor suitable for specified GM and Chevrolet V8 engines, including 327 and 350 applications.

This starter motor features a PARALLEL (STRAIGHT) MOUNTING CONFIGURATION, with an 11-tooth pinion gear and clockwise rotation.

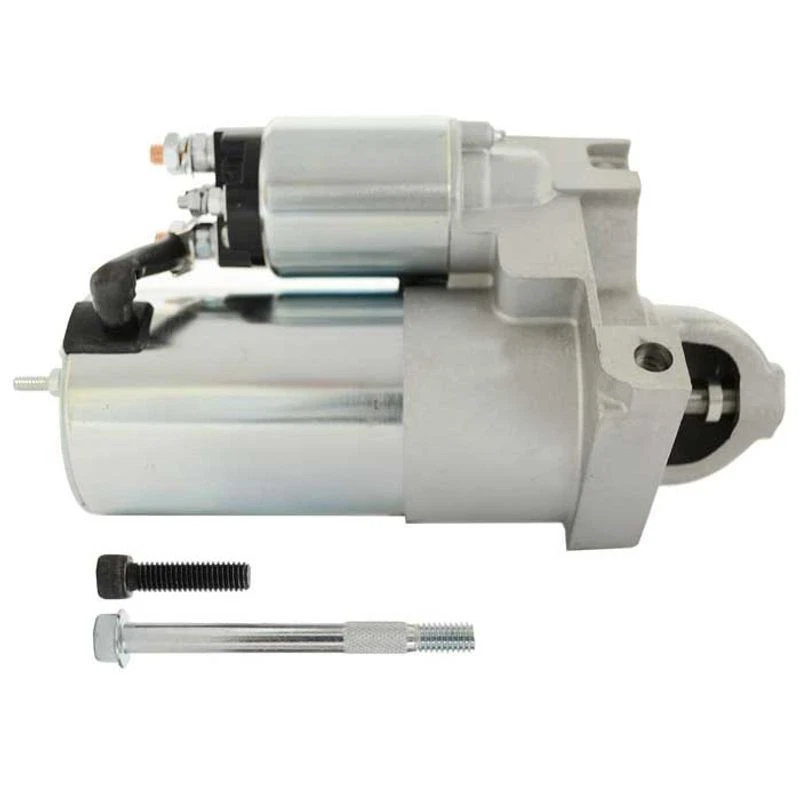

Supplied complete with two mounting bolts, as pictured.

Ideal for replacing a worn or faulty starter motor where the existing mounting configuration and specifications match this unit.

KEY FEATURES

-12V electrical system
-1.7kW power rating

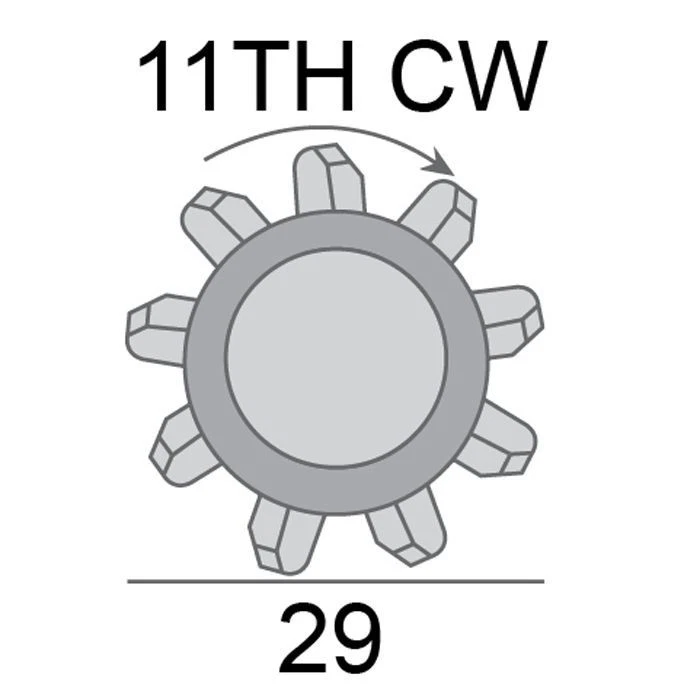

-11-tooth pinion gear
-Clockwise rotation (CW)
-Parallel / straight mounting configuration
-Suitable for specified GM / Chevrolet 327 and 350 V8 engines
-Compact starter motor design
-Includes two mounting bolts

TECHNICAL SPECIFICATIONS

Specification Details

Part Number:SND003
Voltage:12V
Power Rating:1.7kW
Rotation Clockwise(CW)
Pinion Teeth:11
Mounting Type:Parallel / Straight
Overall Length:230mm
Mounting Hole Diameter:10 × 11mm
Mounting Hole Centres:83mm
Flange Diameter:68mm
Nose Cone Length:45mm
Pinion at Rest:4mm
Field Housing Diameter:75mm

VEHICLE APPLICATIONS

Suitable for specified GM and Chevrolet V8 engines, including Chevrolet / GM 327 V8 and Chevrolet / GM 350 V8 (5.7L).

Selected Holden Monaro 350 V8 applications include:

Model            Years

Monaro GTS 350 HT- 1969–1970
Monaro GTS 350 HG- 1970–1971
Monaro GTS 350 HQ- 1971–1974
Monaro GTS HQ 350 Sedan- 1973–1974
Monaro LS HQ 350- 1971–1974

Vehicle applications are a guide only. Engine conversions, modified vehicles and variations in original equipment may require a different starter motor.

IMPORTANT – CHECK YOUR MOUNTING CONFIGURATION BEFORE ORDERING

THIS LISTING IS FOR THE PARALLEL / STRAIGHT MOUNT STARTER MOTOR ONLY.

Please carefully compare the mounting bolt arrangement, starter motor nose housing and solenoid position against the product photographs.

If the mounting configuration or solenoid position is not suitable for your installation, we also offer alternative starter motors in our eBay store:

SND004 – OFFSET MOUNT STARTER MOTOR

Designed for applications requiring an offset mounting bolt configuration.

SMD047 – FULLY INDEXABLE D/E HOUSING STARTER MOTOR

Features a rotatable / adjustable housing that allows the starter motor to be positioned to suit different installation requirements.

Please see our other listings in the HS Auto Parts Superstore for these alternatives.

IMPORTANT FITMENT INFORMATION

It is the buyer’s responsibility to confirm that this starter motor is suitable for their particular engine and installation.

Please check:

Correct parallel mounting bolt configuration
Existing starter motor dimensions and mounting centres
Solenoid position and available clearance
Exhaust headers, extractors and surrounding components
Correct pinion engagement and compatibility with the existing flywheel

Please do not purchase based solely on the engine size or vehicle model.

Vehicles with modified engines, aftermarket exhaust systems or engine conversions may require a different starter motor configuration.

If you are unsure, please compare the specifications and photographs with your existing unit before purchasing.

PACKAGE INCLUDES

1 × JAS SND003 Starter Motor
2 × Mounting Bolts
Supplied as pictured.
