(X1) SAAS 2 IN 1 OIL PRESSURE GAUGE  & WATER TEMPERATURE GAUGE 52MM INC FITTING KIT

(X1) SAAS 2 IN 1 TURBO DIESEL BOOST & EXHAUST TEMP GAUGE 52MM EGT PYRO SET

**** Please Note **** This list is for x2 gauges

Product Details

SAAS Dual Gauge

Diesel boost analogue display

Exhaust temperature digital display

Specifications

Shipping Weight: 0.5 kg
Package Width: 15 cm
Package Height: 12 cm
Package Depth: 9 cm

Details

Product Type Description: N/A
Brand: SAAS
Description: B) DUAL GAUGE DIESEL BOOST ANALOGUE /EXH TEMP DIGITAL

SAAS SG611240 GUAGE is used to monitor the exhaust gas temperature (EGT) of turbo equipped vehicles in conjunction with a pyrometer probe. EGT is an indication of how hot the combustion process is in a vehicles cylinders. Excessive EGT can cause engine or turbocharger damage. Many conditions can result in excessive EGT (i.e. too much fuel or not enough air) and are made worse when a vehicle is pulling a heavy load, climbing or running at continuous high speeds.

The boost pressure function monitors manifold air pressure and is used to ensure excessive pressure is not generated.  By monitoring boost, you are able to keep the vehicle’s engine components in the proper power range to achieve the most performance from your vehicle.

FEATURES

• Fitment: Dash or in pod ( available seperately see sellers other items )
• Display: Dual analgue and digital
• Type: Dual Boost and Exhaust gas temperature (EGT)
• User pre-set audible and visual warnings on both readouts with ability to select off or on.
• Advanced stepper motor technology. Super fast needle response and silent movement.
• Voltage: 12V

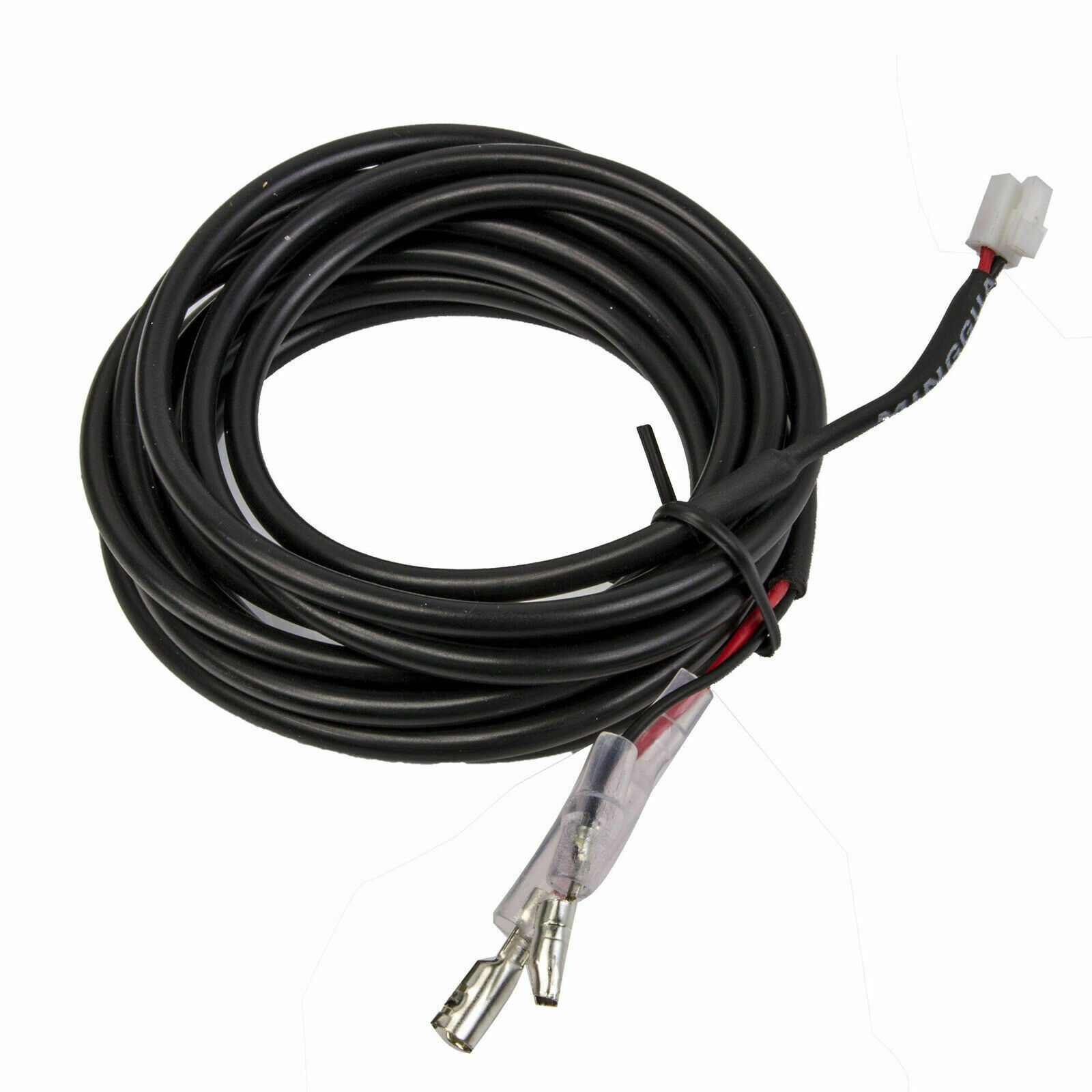

• Saas link system cable included. Power up one gauge and use included link cable to power up multiple gauges
• Material: Aluminium, steel, plastic
• Face Colour: Black
• Bezel Colour: Chrome
• Backlight: Selectable from 7 colours
• Size Dia: 52 mm (2 inch)
• Range: Boost 0 – 30 Psi and EGT 0 – 900 Deg C
• Input connection: Wiring loom included

SPECIFICATIONS

• Analogue boost gauge with range from 0-30psi
• Digital face exhaust temp with range from 0 – 900°C with bright white display
• Selectable 7 color led back light with night time dimming function
• Boost warning: needle and backlight will flash and gauge will beep when a preset level is passed (adjustable)
• Exhaust warning: digital display and backlight will flash and gauge will beep when a preset level is passes (adjustable)
• Selectable gauge warning tone: (ON-OFF)

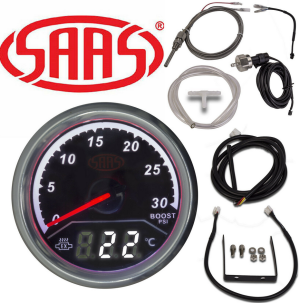

INCLUDES

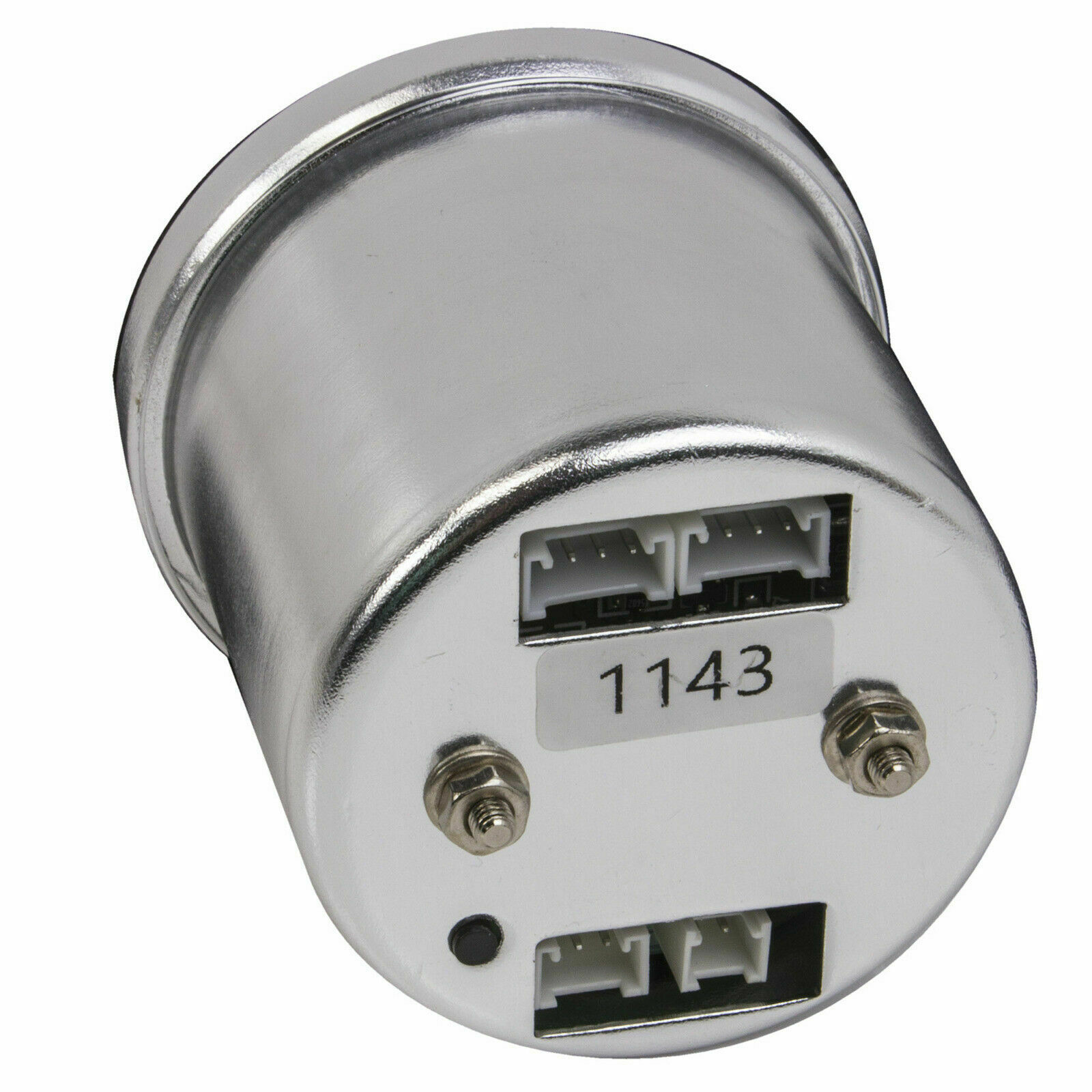

• 52mm gauge with wiring harnesses

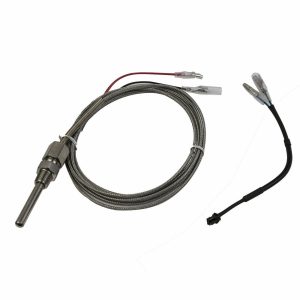

• EGT pyrometer probe with 1/8” NPT thread
• Diesel  compression fitting and 96” lead wire.
• Electric boost sensor with barb fitting included (with weather proof plugs)
• Mounting bracket with fasteners and P-Clip

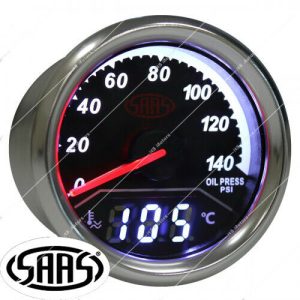

Product Details

SAAS Dual Gauge

Oil pressure analogue display

Water temperature digital display

Details

Product Type Description: N/A
Brand: SAAS
Description: DUAL GAUGE OIL PRESS ANALOGUE / WATER TEMP DIGITAL

SAAS SG613020 Gauge is a single water temperature & oil pressure gauge ideal for monitoring your engines water temperature and oil pressure. Monitoring oil pressure which ensures the longevity of your vehicle and allows you to ensure that the correct pressure is maintained so that your car bearings are well lubricated. This is crucial when travelling at continuous high speeds and towing heavy loads. Low oil pressure can be an indicator of a low oil level, diluted or worn out oil, worn engine bearings, high oil temperature or a worn oil pump.

The temperature gauge is designed to indicate the temperature of your engine’s coolant. This gauge will tell you if your engine’s coolant is cold, normal, or overheating.This assists in identifying such problems as if the thermostat is sticking or not opening and closing right as well as a clog in the radiator or a water pump problem. This is crucial when travelling at continuous low speeds and towing heavy loads.

FEATURES

• Fitment: Dash or in pod ( available seperately see sellers other items )
• Display: Dual analgue and digital
• Type: Oil Pressure / Water Temp
• User pre-set audible and visual warnings on both readouts with ability to select off or on.
• Advanced stepper motor technology. Super fast needle response and silent movement.
• Voltage: 12V
• Saas link system cable included. Power up one gauge and use included link cable to power up multiple gauges
• Material: Aluminium, steel, plastic
• Face Colour: Black
• Bezel Colour: Chrome
• Backlight: Selectable from 7 colours
• Input connection: Wiring loom included

SPECIFICATIONS

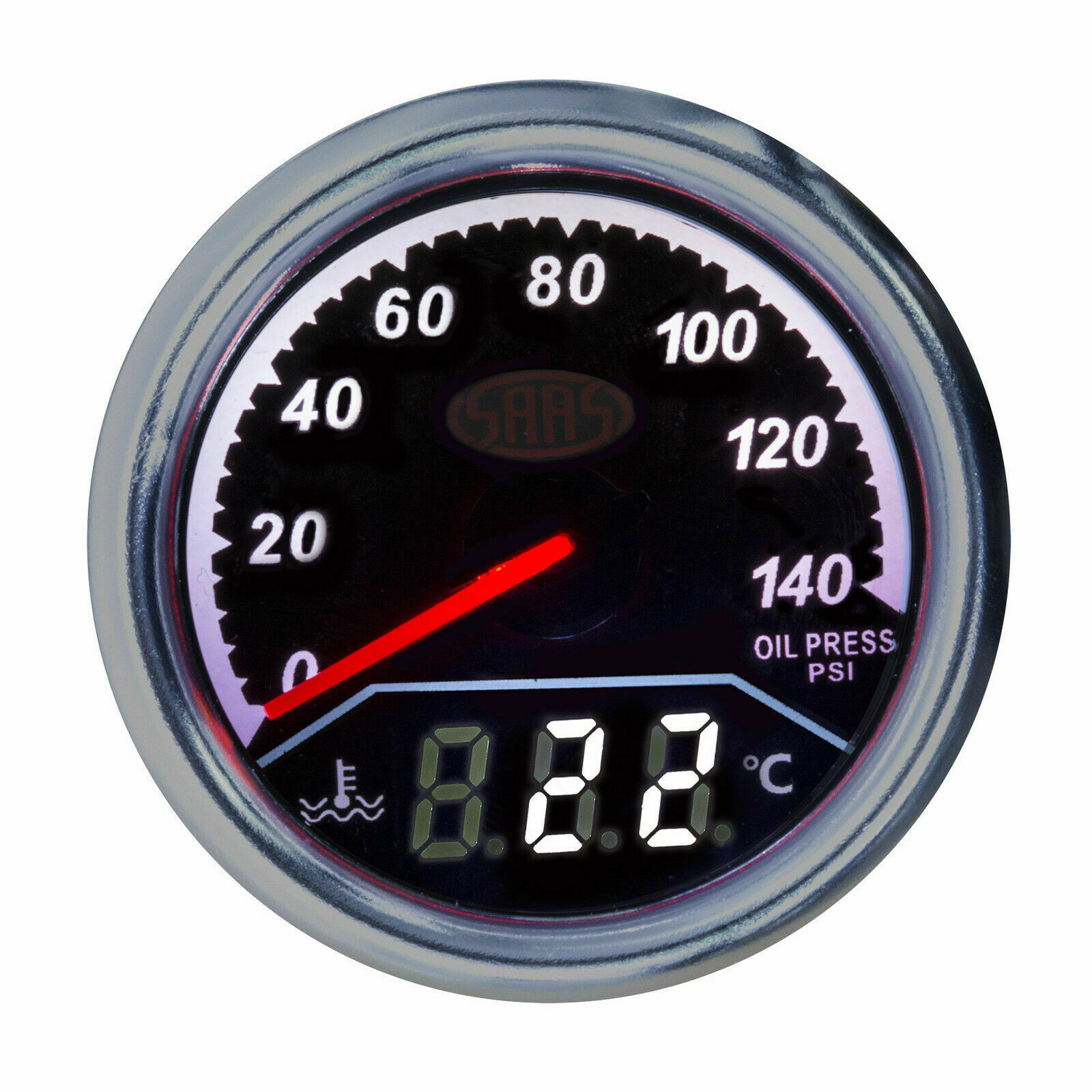

• Analogue Face Oil Pressure Gauge from 0 – 140psi.
• Digital face temperature gauge with range from 0-120°c with bright white display
• Selectable 7 color led back light with night time dimming function
• Oil Pressure Warning: Needle and Back-light Will Flash and Gauge Will Beep When Pressure Drops Below a Preset Level. (Adjustable)
• Water Temp Warning: Digital Display and Back-light Will Flash and Gauge Will Beep When a Preset Level is Passed. (Adjustable)
• Selectable gauge warning tone: (ON-OFF)

INCLUDES

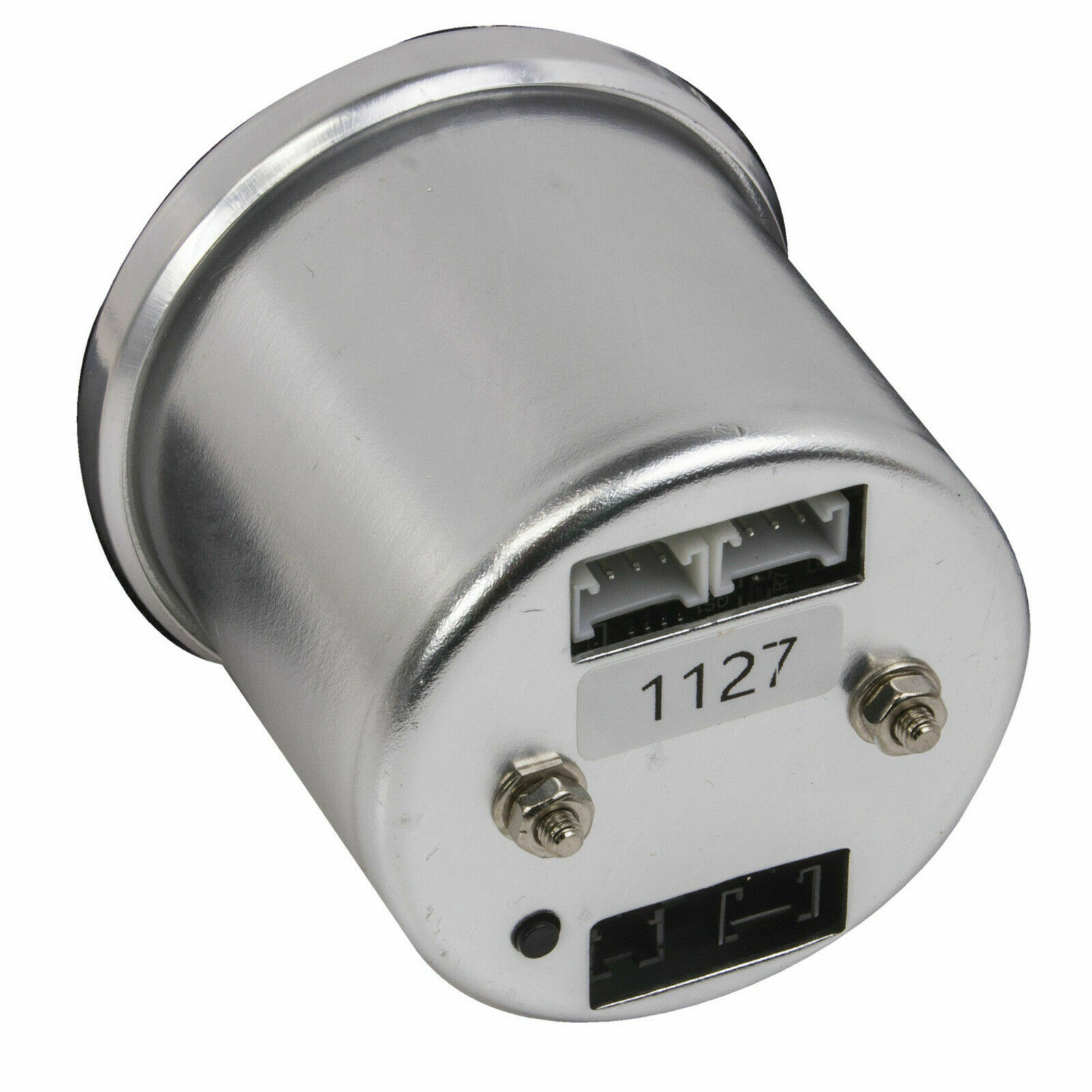

• 52mm gauge with wiring harnesses
• Mounting bracket with fasteners and P-Clip

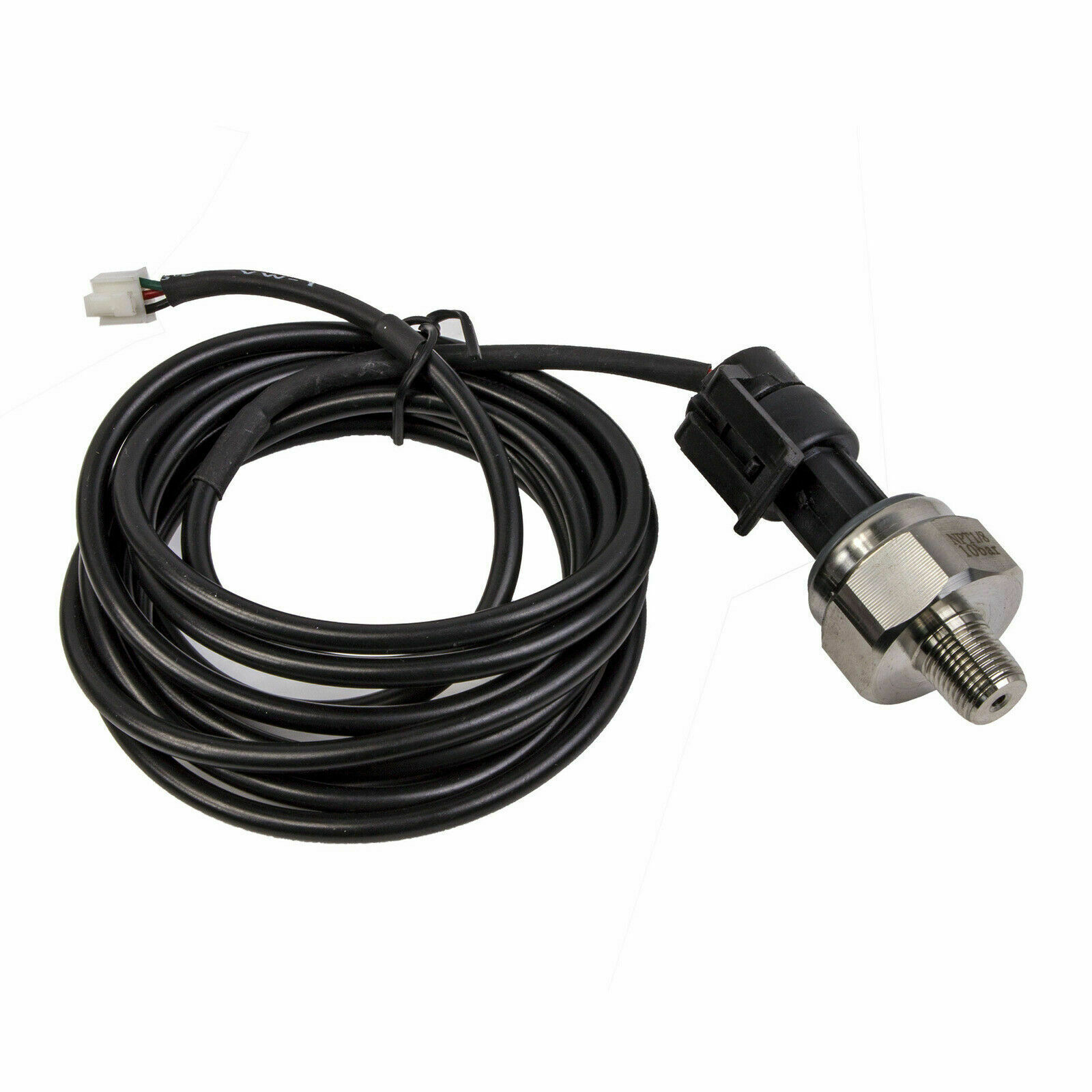

• Electric oil pressure sensor with 1/8 NPT thread

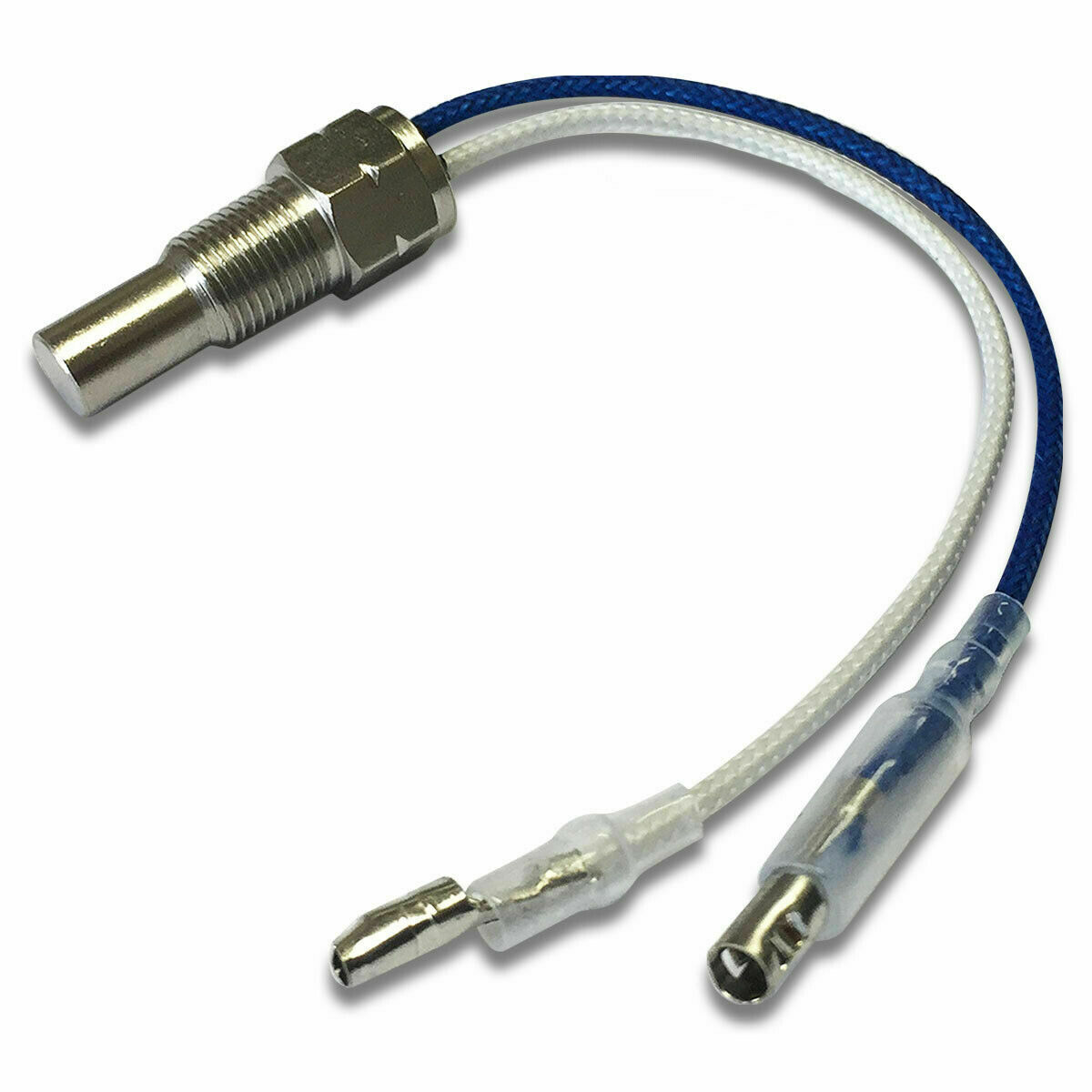

• Electric water temperature sensor with 1/8 NPT thread
