ROADVISION RBL4032SCD + RBWKD Wiring Harness Kit – 32” Dual Colour DRL LED Light Bar Combo

Part Numbers: RBL4032SCD + RBWKD

✨ Dual Colour DRL – White or Amber

💡 High-Performance LED Light Bar

🔌 Includes RBWKD Plug & Play Wiring Harness

📏 32-Inch Stealth Series Design – Compact, Rugged, and Powerful

Product Overview

This combo kit includes the Roadvision RBL4032SCD 32” Dual Colour DRL LED Light Bar and the RBWKD Plug & Play Wiring Harness — giving you everything you need for a professional-grade installation straight out of the box.

The RBL4032SCD delivers huge light output and reliability, while the RBWKD harness ensures simple, clean wiring with integrated relays, fuses, and rocker switches for both driving lights and DRLs.

Whether you’re touring, working, or off-roading, this complete kit combines quality and convenience in one neat package.

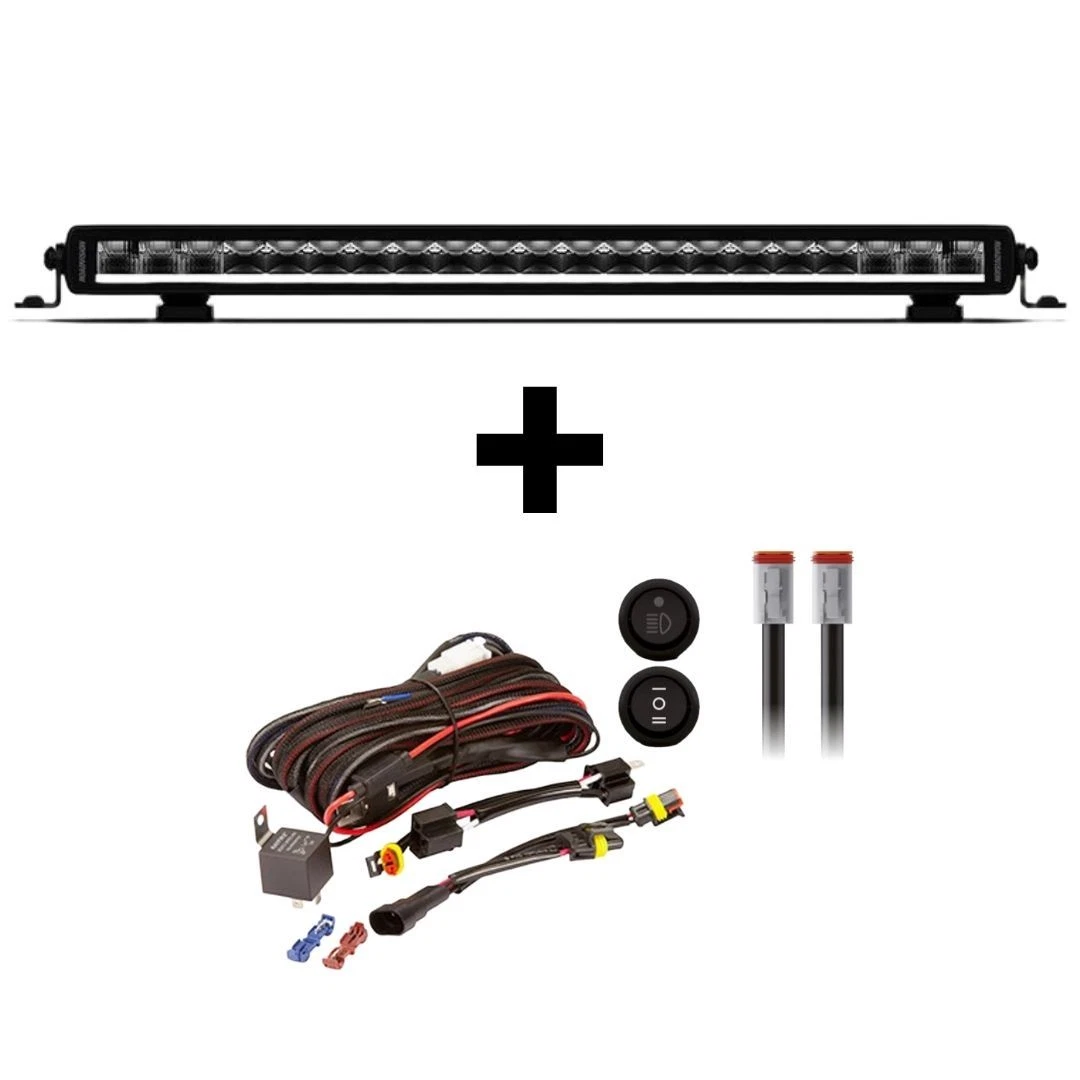

Kit Includes

• 1 × Roadvision RBL4032SCD 32” Dual Colour DRL LED Light Bar

• 1 × Roadvision RBWKD Plug & Play Wiring Harness (includes DRL and driving light switch wiring)

• Mounting brackets, bolts, and fittings

• 4-Pin ATP connector for fast installation

Light Bar Features (RBL4032SCD)

• Dual Colour DRL – Switch between White or Amber

• 32” Housing – Ideal for bullbars, roof racks, and canopies

• High-Intensity LEDs – 33 × 3 W Osram LEDs

• Durable Construction – IP67 rated dustproof and waterproof

• Die-Cast Aluminium Housing – Black powder-coated

• Tough Polycarbonate Lens – UV-stabilised and impact-resistant

• Multi-Voltage Input – 10–30 V DC (12 V & 24 V systems)

• Plug & Play Installation – 4-Pin ATP connector included

• Adjustable Side Brackets and Full Mounting Kit Included

Specifications

Model: RBL4032SCD

Description: S40 Stealth Pro Series 32” LED Light Bar

Beam Pattern: Projector Combo 6 Driving / 27 Spot

Maximum Lumens @ 10m: 52,271 lm

Beam Distance @ 1lx: 918 m

Input Voltage: 10–30 V DC

Maximum Watts: 138 W

Number of LEDs: 33 × 3 W Osram

Current Draw @ 13.8 V: 10 A

Lens Construction: Polycarbonate

Housing Construction: Aluminium

Connector Type: 4-Pin ATP Plug

Dimensions (L × H × D): 798 × 55 × 40 mm

Waterproof Rating: IP67

Wiring Harness Features (RBWKD)

• Genuine Roadvision harness designed for Dual Colour DRL light bars

• Includes pre-wired relays and fuses

• Dual rocker switches for both DRL and driving light control

• Deutsch connectors for quick and secure installation

• Heavy-duty sheathing and cable protection

• Plug & Play design for fast, tidy installs

💡 Tip: We also stock a full range of vehicle-specific High Beam Patch Harnesses to make your install truly plug-and-play — all available in our store.

Compatible Light Bar Family

The RBL4032SCD belongs to Roadvision’s premium Dual Colour DRL range, alongside RBL4013SCD, RBL4021SCD, RBL2112C, RBL2121C, and RBL7013SCD.
