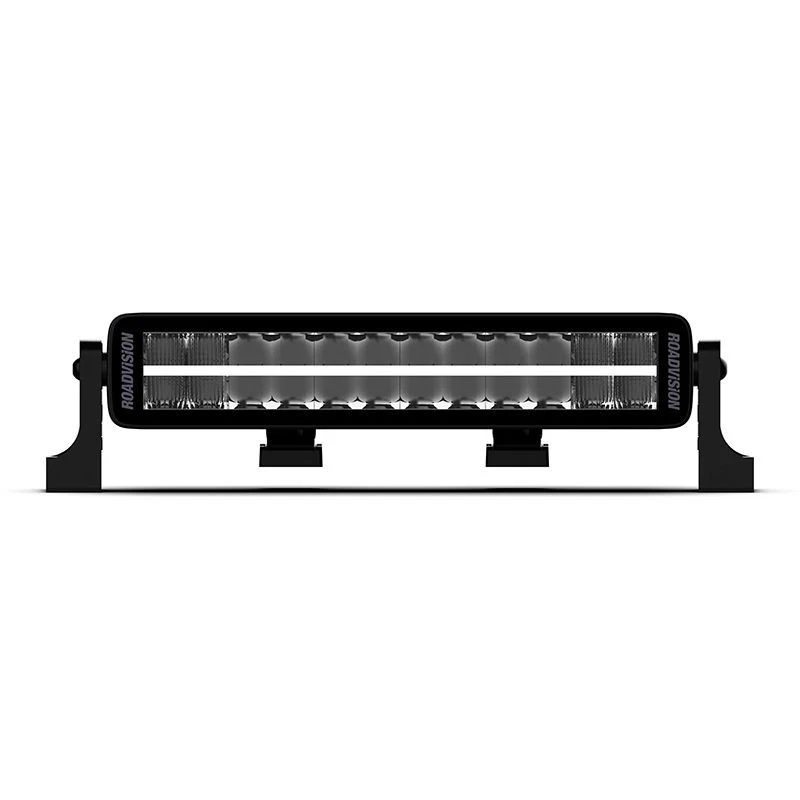

ROADVISION RBL7013SCD – 13” Dual Colour DRL LED Light Bar

Part Number: RBL7013SCD

✨ Dual Colour DRL – White or Amber

Premium Stealth Pro Series LED Light Bar

Compact 13-Inch Design

Compatible with RBHDWKD Heavy Duty Wiring Harness

Product Overview

The Roadvision RBL7013SCD is part of the top-tier Stealth Pro Series (S70) range — built for serious off-roaders and professionals who demand maximum performance in a compact, rugged design.

Selectable White or Amber DRLs give you both style and safety, while the Projector Combo Beam delivers an outstanding blend of long-distance spot and wide flood illumination.

Ideal for bullbars, roof racks, and ute setups where high output is essential but space is limited, this bar packs exceptional power and reliability into a sleek 13” frame.

Key Features

• Dual Colour DRL – Switch between White or Amber daytime running lights

• 13” Stealth Pro Design – Compact but powerful

• Projector Combo Beam – Spot and Flood performance in one bar

• High-Performance LEDs – 24 × 3 W Osram LEDs for intense clarity

• IP67 Rated – Dustproof and waterproof construction

• Die-Cast Aluminium Housing – Black powder-coated for long life

• UV-Stabilised Polycarbonate Lens – Virtually unbreakable

• Multi-Voltage Input – 10 – 30 V DC for 12 V and 24 V systems

• Plug & Play Installation – 4-Pin Deutsch plug included

• Adjustable mounting brackets and fittings included

Specifications

Model: RBL7013SCD

Description: S70 Stealth Pro Series 13” LED Light Bar

Beam Pattern: Projector Combo 8 Driving / 4 Spot

Maximum Lumens @ 10 m: 23,058 lm

Beam Distance @ 1 lx: 743 m

Input Voltage: 10 – 30 V DC

Maximum Watts: 72 W

Number of LEDs: 24 × 3 W Osram

Current Draw @ 13.8 V: 6.3 A

Lens Construction: Polycarbonate

Housing Construction: Aluminium

Connector Type: 4-Pin Deutsch Plug

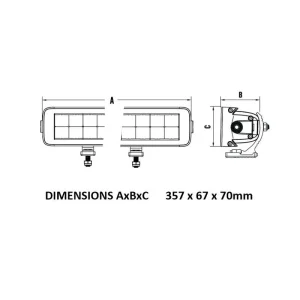

Dimensions (L × H × D): 357 × 67 × 70 mm

Waterproof Rating: IP67

Compatible Wiring Harness

For a professional-grade setup, pair this bar with the Roadvision RBHDWKD Heavy Duty Wiring Harness, specifically designed for dual-colour DRL light bars.

This harness includes separate rocker switches for DRL and driving light functions, relays, fuses, and an ATP connector for a clean, reliable install.

Note: We also stock vehicle-specific High Beam Patch Harnesses to make the job even easier. These plug straight into your headlamp circuit — no cutting or soldering required.

Compatible Light Bar Family

The RBL7013SCD belongs to Roadvision’s Stealth Pro Dual Colour DRL Series, which also includes:

• RBL7021SCD – 21” Dual Colour DRL LED Light Bar

• RBL7030SCD – 30” Dual Colour DRL LED Light Bar

We also offer combo kits including the RBHDWKD harness for an all-in-one installation package.
