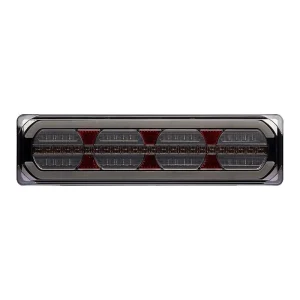

ROADVISON LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref Glowtech Tail

Part Number: BR392ARW

Listing is for one light Combo

• DIMENSIONS 390 x 105 x 39mm

ROADVISION’s BR392 Series provides a premium lighting solution, combining Stop, Tail, Indicator, and Reverse functions with the added sophistication of a sequential indicator and Grey Glowtech tail light. Engineered for safety and style, these advanced LED lamps deliver exceptional brightness and an extended lifespan of up to 100,000 hours with reliable solid-state technology. The BR392 Series is ADR-approved for all functions and built tough with a lightweight polycarbonate housing and lens. Its mild tinted lens and gun metal grey chrome finish create a sleek, modern aesthetic, while the integrated retro reflector enhances visibility. Designed for versatility and effortless installation, the BR392 Series is the ideal choice wherever combination lamps are needed.

SPECIFICATIONS BR392ARR BR392ARW Input Voltage 10-30 VDC 10-30 VDC

Number of LEDS Indicator – 24 LEDs, Stop – 40 LEDs, Tail – 54 LEDs Indicator – 24 LEDs, Stop – 20 LEDs, Tail – 54 LEDs, Reverse – 20 LEDs

Current Draw @ 13.8V Ind – 0.37A, Stop – 0.27A, Tail – 0.18A @ 13.8V Ind – 0.35A, Stop – 0.21A, Tail – 0.18A, Rev – 0.2A @ 13.8V

LENS CONSTRUCTION Polycarbonate Polycarbonate Housing Construction Polycarbonate Polycarbonate

MOUNTING HOLE CENTRES 185-225mm

OVERALL DIMENSIONS 390 x 105 x 39mm

CABLE LENGTH 300mm Tinned Copper 300mm Tinned Copper

CTA APPROVAL CTA-061826 CTA-061827

WIRING Earth – White, Stop – Red, Tail – Brown, Indicator Left – Yellow, Indicator Right – Green Earth – White, Stop – Red, Tail – Brown, Indicator Left – Yellow, Indicator Right – Green Reverse – Black
