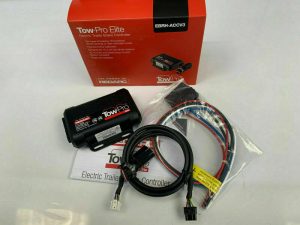

REDARC TOWPRO ELITE REMOTE HEAD ELECTRIC BRAKE CONTROLLER EBRH-ACCV2

Introducing the new Towpro Elite, a new version of the very popular TowPro electronic brake
controller from Redarc. Improving on the first generation of the TowPro, the TowPro Elite features
active calibration, constantly monitoring the the direction of travel, and removing the need for an
initial calibration process. The TowPro Elite will even calibrate without a trailer attached, and

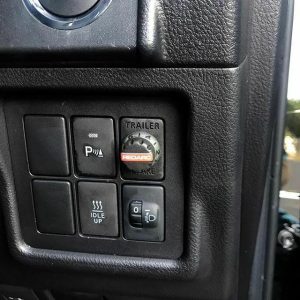

maintainsthe ability to be mounted in any orientation. The compact main unit can be hidden away
under the dashboard, and the control knob can then be mounted in an easy to access location for the
driver. No more banging knees or shins on big bulky brake controllers!

The Towpro offers the user 2 setting options. Fully automatic (inertia sensing, commonly known as
proportional) or user controlled. This offers the user the best of both worlds in trailer control.
Fully automatic control is great for highway towing, providing braking control to the trailer
proportional to the tow vehicles braking. The user control setting gives the driver total control in
situations such as towing off road.

Suitable for use in both 12v and 24v applications, the Towpro is easy to install, with no voltage
reducers required in 24v vehicles, saving on installation cost and time. It is also capable of operating
either electric or electric/hydraulic brakes.

Technical Specifications

• Operating Voltage – 9-32 volts
• Brake Input Voltage – 5-24 volts
• Brake Output Voltage – 12 volts
• Trailer Axles – 12 volts – 3 axles 24 volts – 2 axles
• Nominal Current Draw – 18a@12 volts 12a@24 volts
• Standby Current – <10mA
• Operating Temperature – -20 to 60 degrees C
• Warranty – 2 years
