REDARC TIM05 12V 24V MULTI FUNCTION TIMER RELAY 10A ADJUSTABLE 1-60 SEC MIN

Listing description

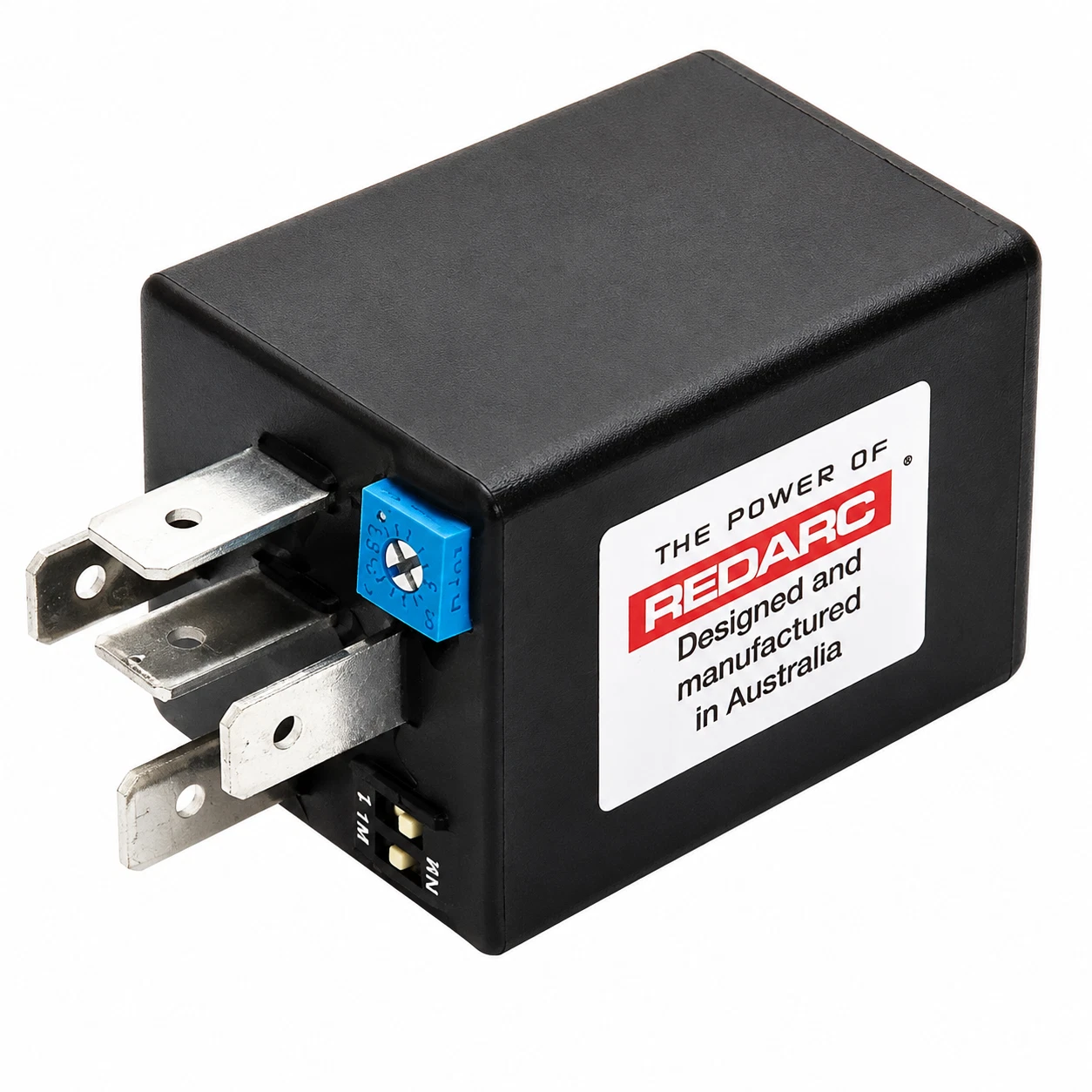

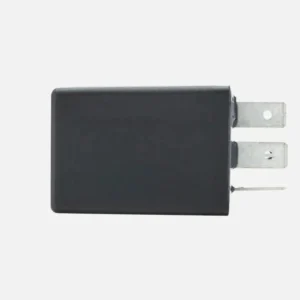

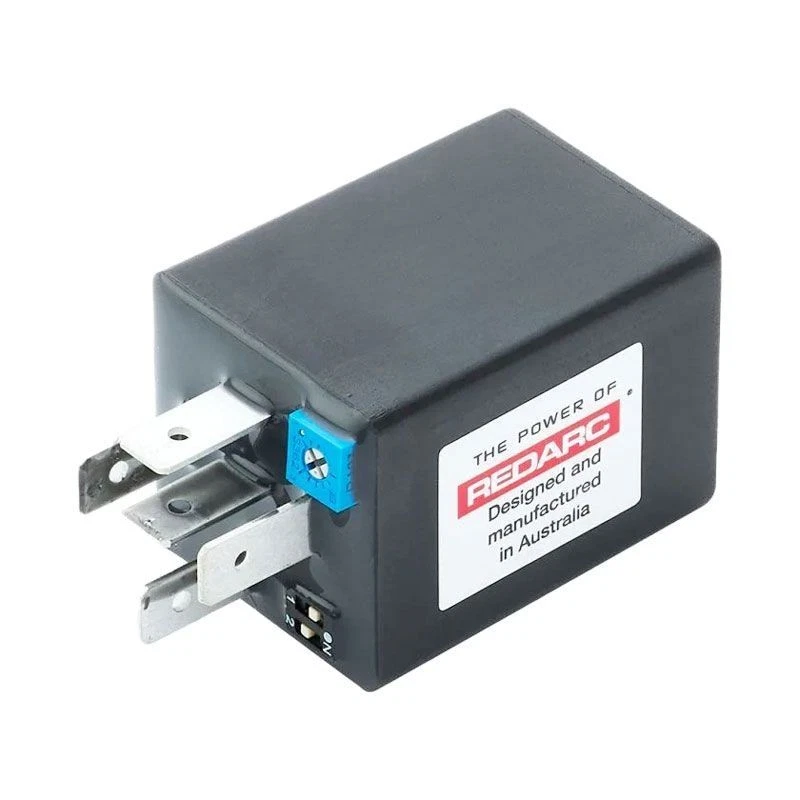

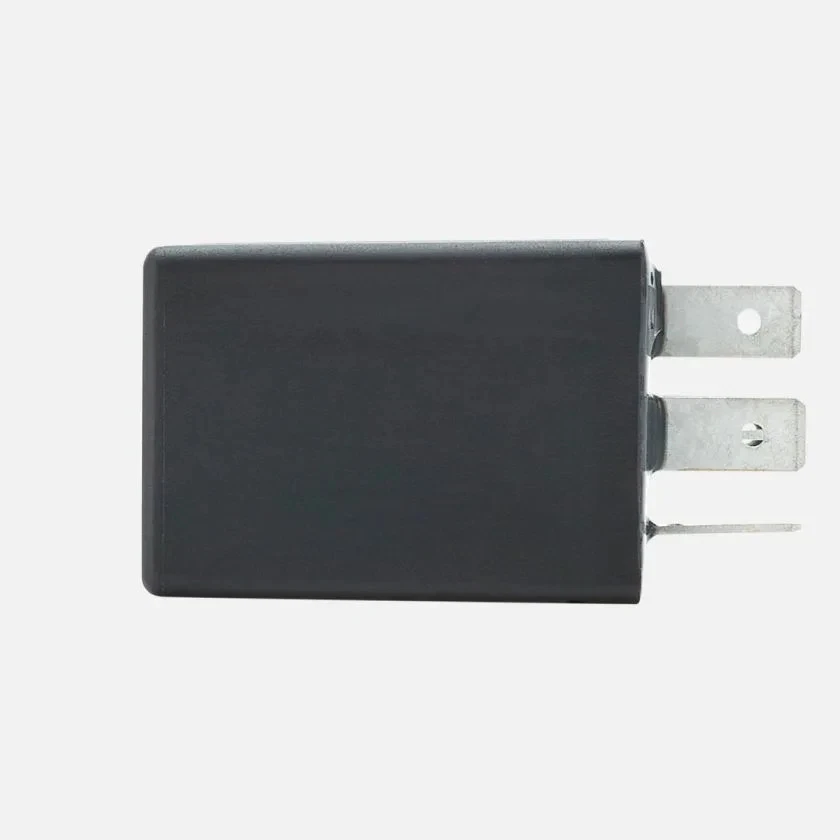

REDARC TIM05 MULTI-FUNCTION TIMER RELAY – 12V / 24V

Part Number: TIM05

The genuine REDARC TIM05 is a versatile multi-function electronic timer relay designed for 12V or 24V negative-ground automotive electrical systems.

It is ideal for automotive, 4WD, caravan, camper, truck, machinery and custom electrical applications where you need an electrical circuit to operate for a predetermined amount of time rather than simply switching on and off like a conventional relay.

The TIM05 plugs into a standard automotive relay base and uses the same pin numbering as a standard automotive relay, making it particularly useful for custom installations.

WHAT CAN IT BE USED FOR?

A timer relay can be used for a huge range of applications where automatic timed operation is required, including:

Cooling or ventilation fans
Interior, courtesy or work lights
Pumps
Solenoids and valves
Warning buzzers and alarms
Delayed accessory operation
Temporary accessory power
Commercial vehicle equipment
4WD and caravan accessories
Machinery and equipment controls
Custom automotive electrical installations
For example, a timer can be used where a light, fan, pump or other electrical accessory needs to remain operating for a predetermined period, then automatically switch without the driver or operator having to manually turn it off.

ADJUSTABLE TIMING

The TIM05 provides user-adjustable timing from:

1–60 Seconds OR 1–60 Minutes

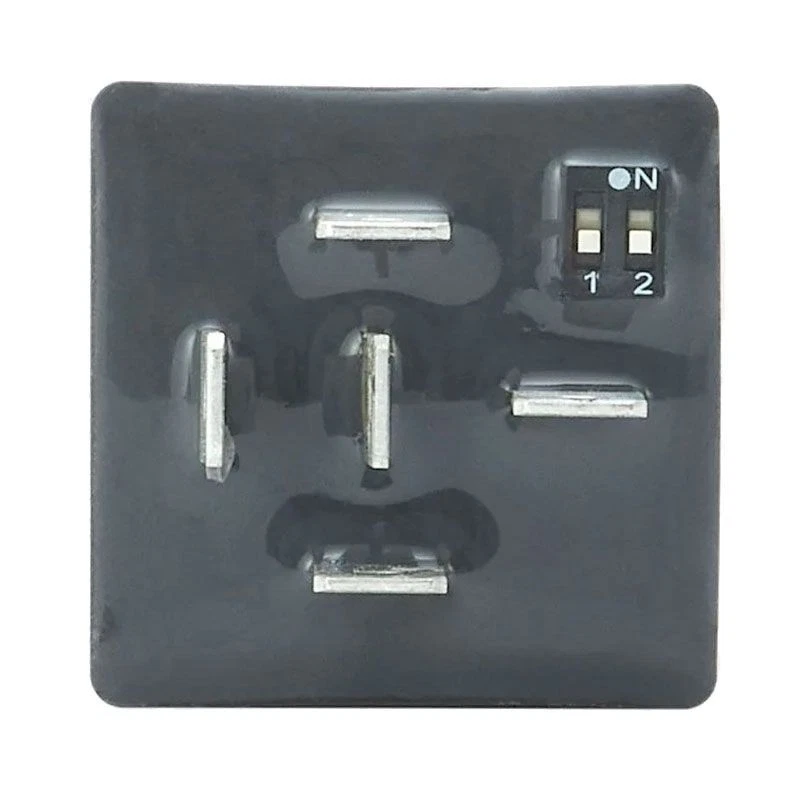

Simply select the required seconds or minutes range using Switch 2, then use the built-in potentiometer to adjust the desired operating time.

FEATURES & SPECIFICATIONS

Brand:REDARC
Part Number:TIM05
Product:Multi-Function Timer Relay
Voltage:12V / 24V DC
Maximum Current:10 Amps
Timing Range:1–60 seconds / 1–60 minutes
Relay Type:Changeover
Mounting/Connection:Standard automotive relay base
Output:Positive output via Pin 87
Application:12V/24V negative-ground systems

The timer is started by switching Pin 86 ON or OFF, depending on the selected Switch 1 configuration.

GENUINE REDARC PRODUCT

A quality Australian-designed REDARC electronic timer suitable for professional automotive and custom electrical installations.

Please Note: Correct installation and configuration are important. Ensure the timer’s switching mode, current capacity and timing function are suitable for your particular application before installation.

For loads exceeding the timer’s 10A maximum rating, use the timer to trigger an appropriately rated secondary relay rather than switching the load directly.
