NOLATHANE 49008 to suit COMMODORE

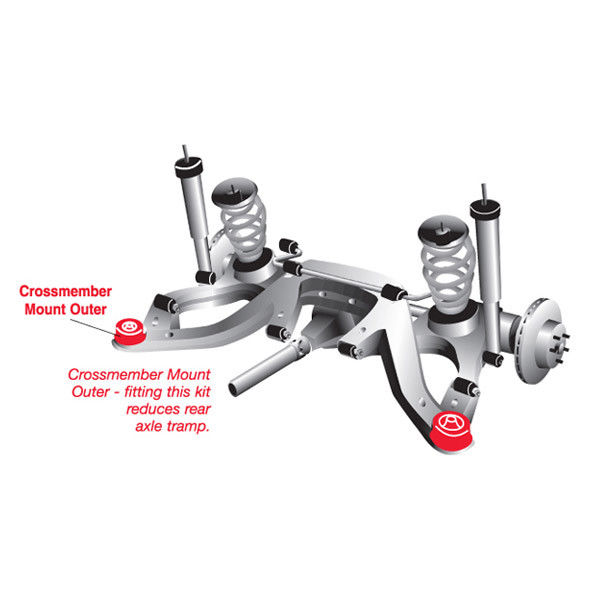

REAR SUBFRAME MOUNT – OUTER BUSH

The Nolathane kit replaces the bushings in the rear subframe to dramatically reduce
rear cross member misalignment & movement which allows a more positive feel from
the rear end during cornering. Recommended for high performance applications.

This bush kit suits the following vehicles;

• HOLDEN CAPRICE VQ(3/1990-2/1994)
• HOLDEN CAPRICE VR, VS(3/1994-6/1999)
• HOLDEN COMMODORE VN, VP, VG INCL UTE & HSV(8/1988-7/1993)
• HOLDEN COMMODORE VR, VS INCL UTE & HSV(7/1993-9/1997)
• HOLDEN COMMODORE VT, VX, VU INCL UTE & HSV(9/1997-9/2002)
• HOLDEN STATESMAN VQ(3/1990-2/1994)
• HOLDEN STATESMAN VR, VS(3/1994-6/1999)
• TOYOTA LEXCEN VN, VP(8/1988-7/1993)
• TOYOTA LEXCEN VR, VS(7/1993-9/1997)

Bush    Bush      OD           ID                L               FL
Type    Qty       AA/AB       B                 C              D
 1         2         96 mm      19.2 mm    77 mm     15 mm
 9         2         110 mm     68 mm      24 mm      9 mm

NOTE!

Please confirm the dimensions of each bush before fitment! Returns are NOT accepted
for incorrect purchases that have been attempted to be fitted.

If you are unsure if this is the correct bush kit for your vehicle, please contact us before
purchasing.
