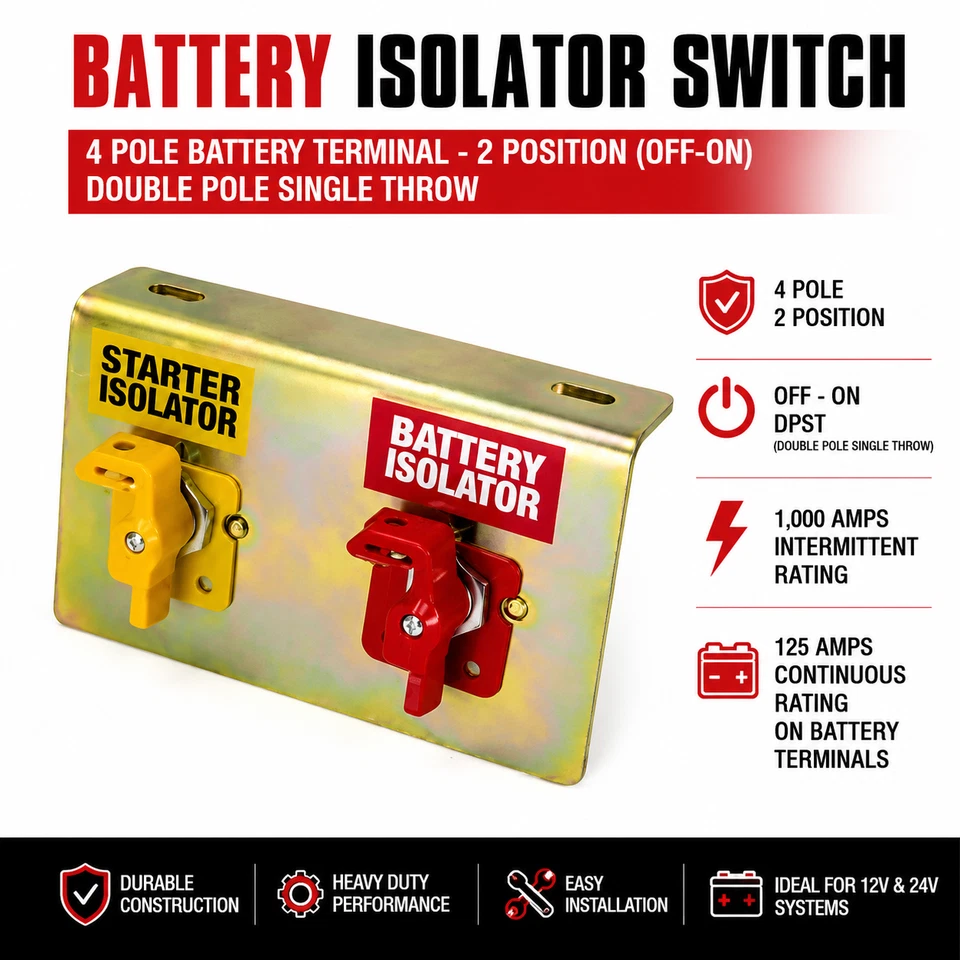

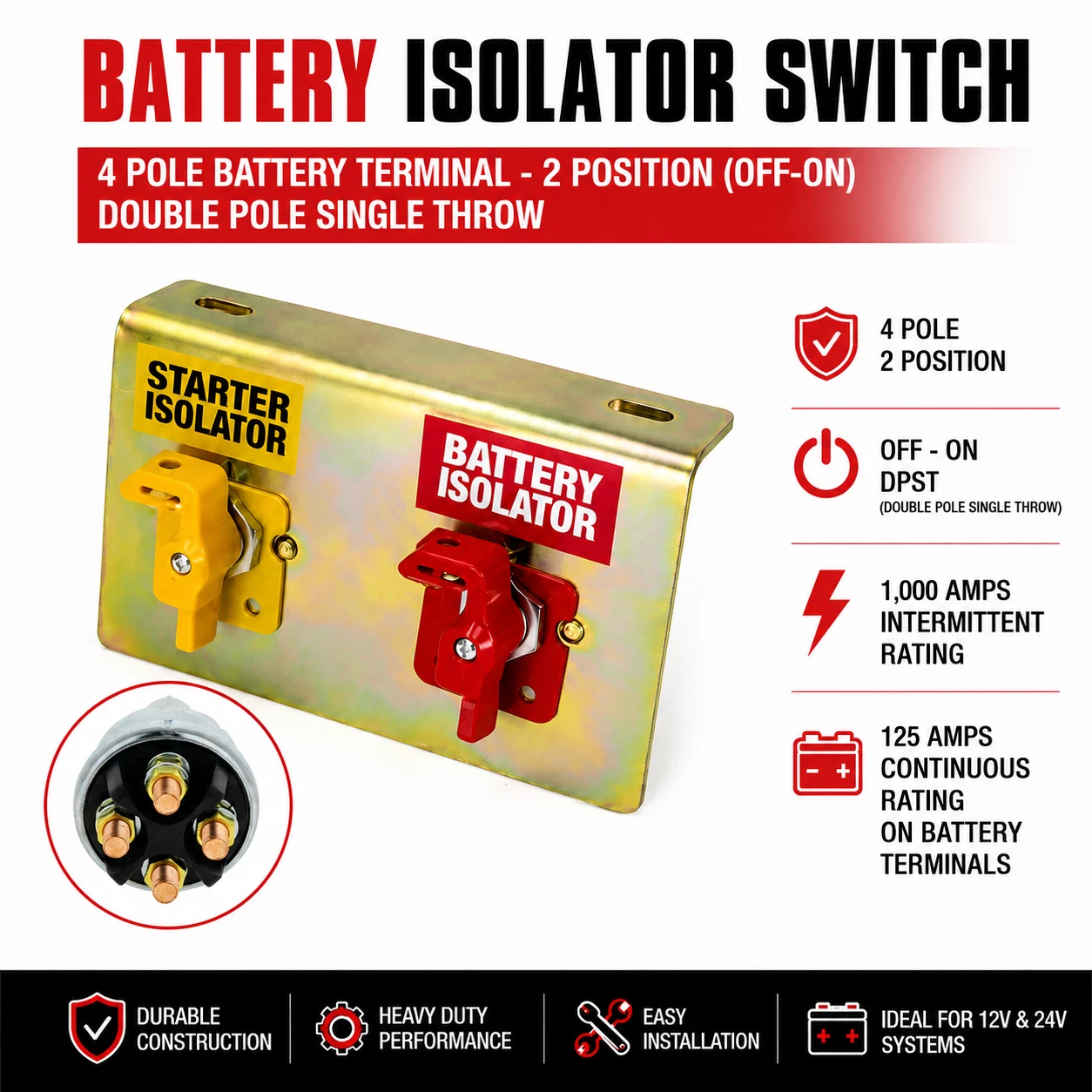

Mounting Bracket And Dual MASTER Isolators Battery And Starter switches

Part Number: BKT-75910-2, SW6906YK, SW6906RK

Specs:

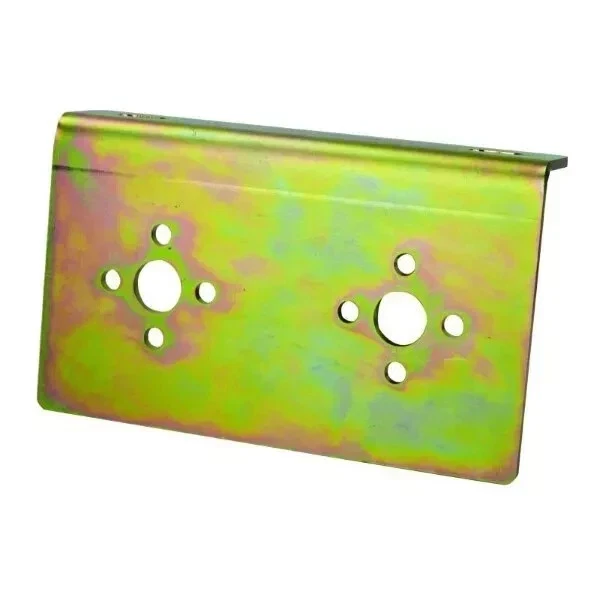

195mm long x 119mm high x 43 wide (mounting lip) x 5mm thick.

( No Decal provided ONLY there as a display)

Please Note: This listing is for the mounting bracket and x2 switches, one red lockout lever and one yellow

We sell both the Red and Yellow Lockout lever kits, switches and the mounting bracket by itself in our store.

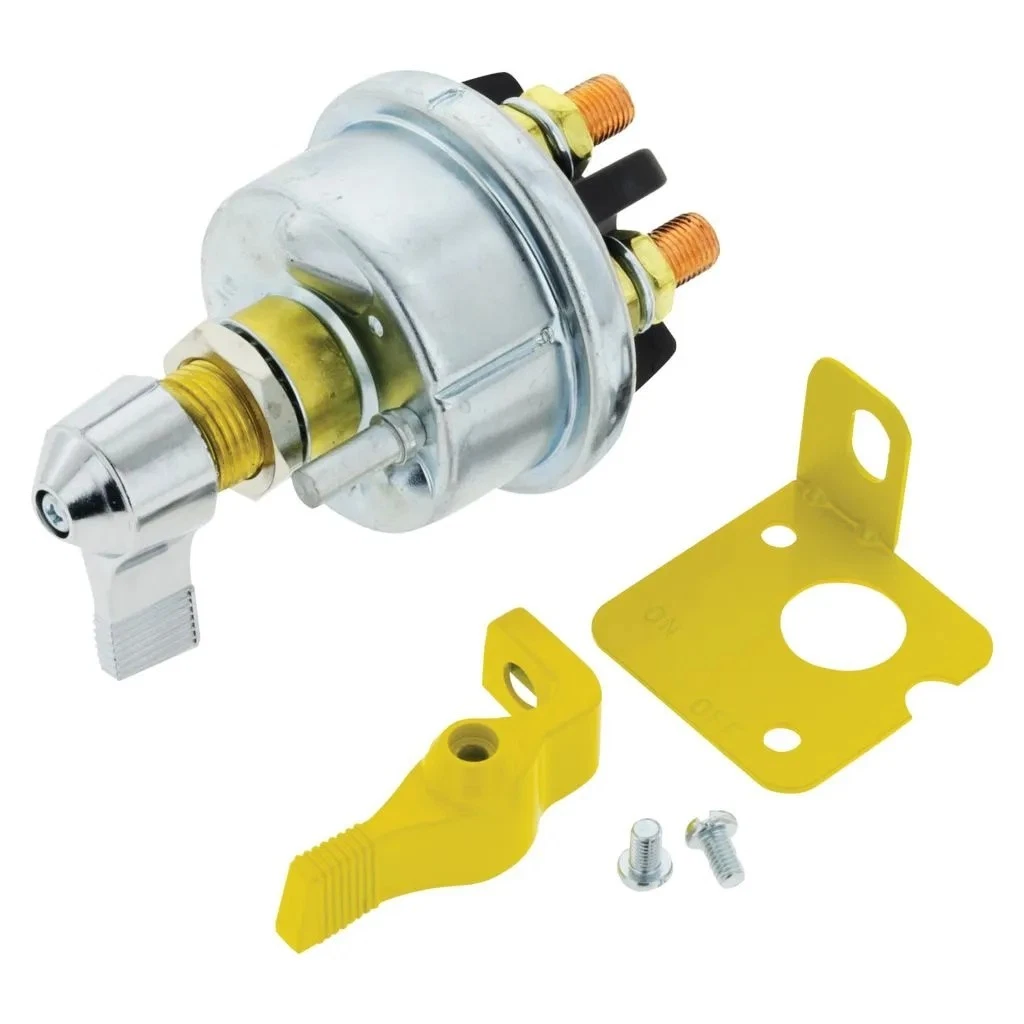

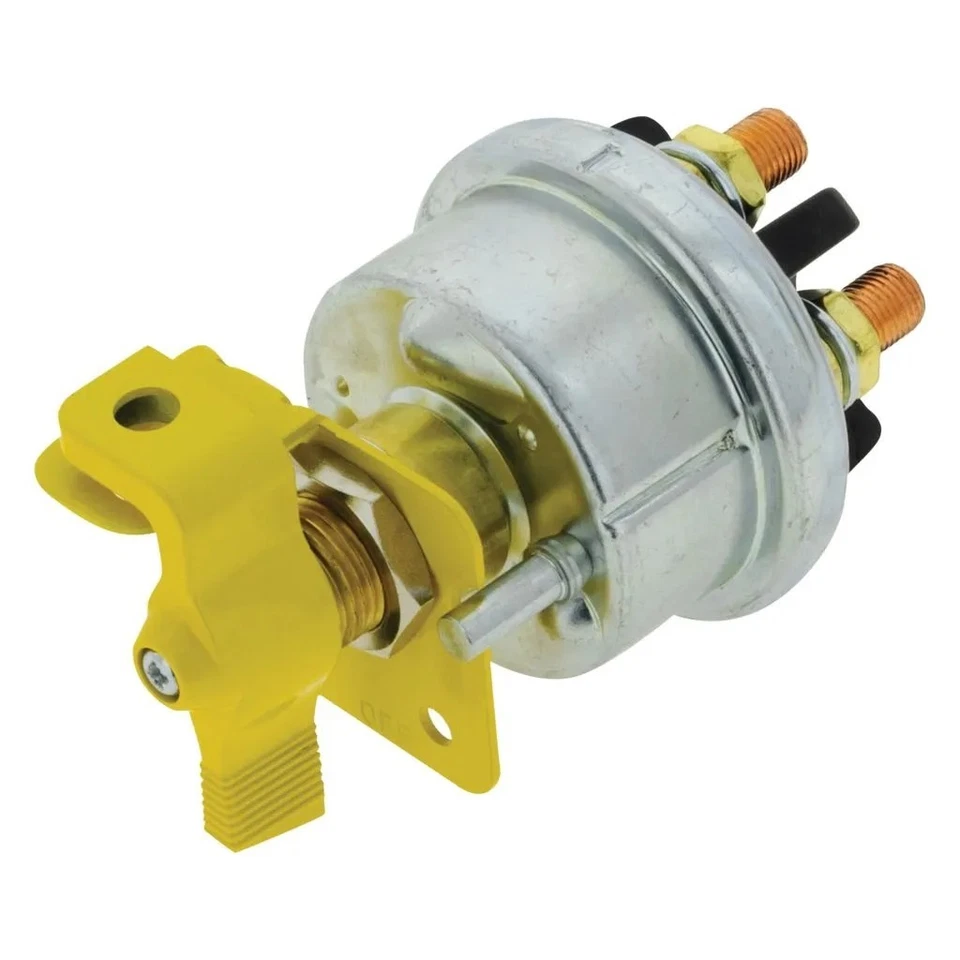

BATTERY MASTER SWITCH WITH YELLOW LOCKOUT LEVER (KIT) COPPER

Part Number: SW6906YK

Additional Information

Jaylec Battery Master Switch 6 – 36 Volt

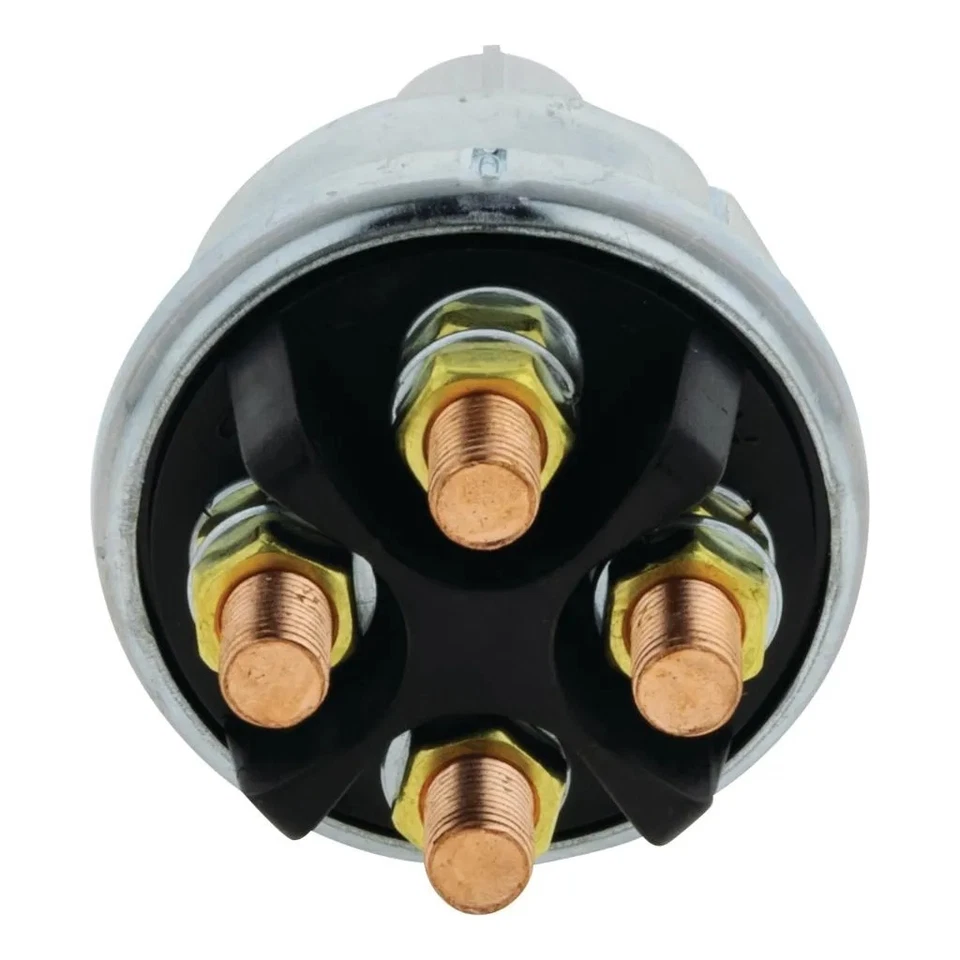

4 Pole Battery Terminal

2 Position – Off/On, Double Pole Single Throw, (DPST)

1000A Intermittent, 125A Continuous Rating on Battery Terminals

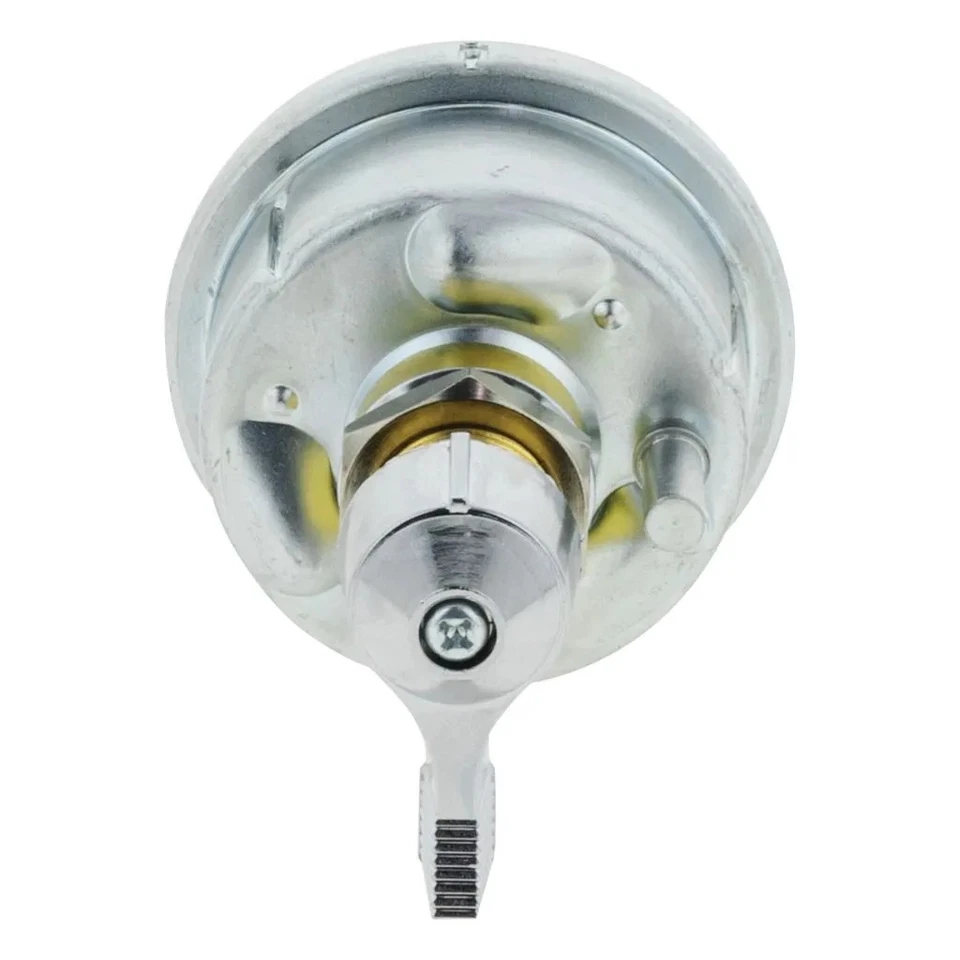

Chrome plated DieCast Alloy Lever Actuator, Brass Mounting Stem with weather resaistant Twin O-Ring seal

Copper Laminated Contacts and Plated Steel Casing with optional Lock Out Lever Kits available

Indexing Pins align switch and prevents rotation of housing

Specifications

Voltage: 6 – 36 VOLT
Amps: 1000

125A Continuous Rating on x4 Battery Terminals
Function: ON / OFF
Number of Terminals: 4
Number of Positions: 2
Contact Configuration: DPST

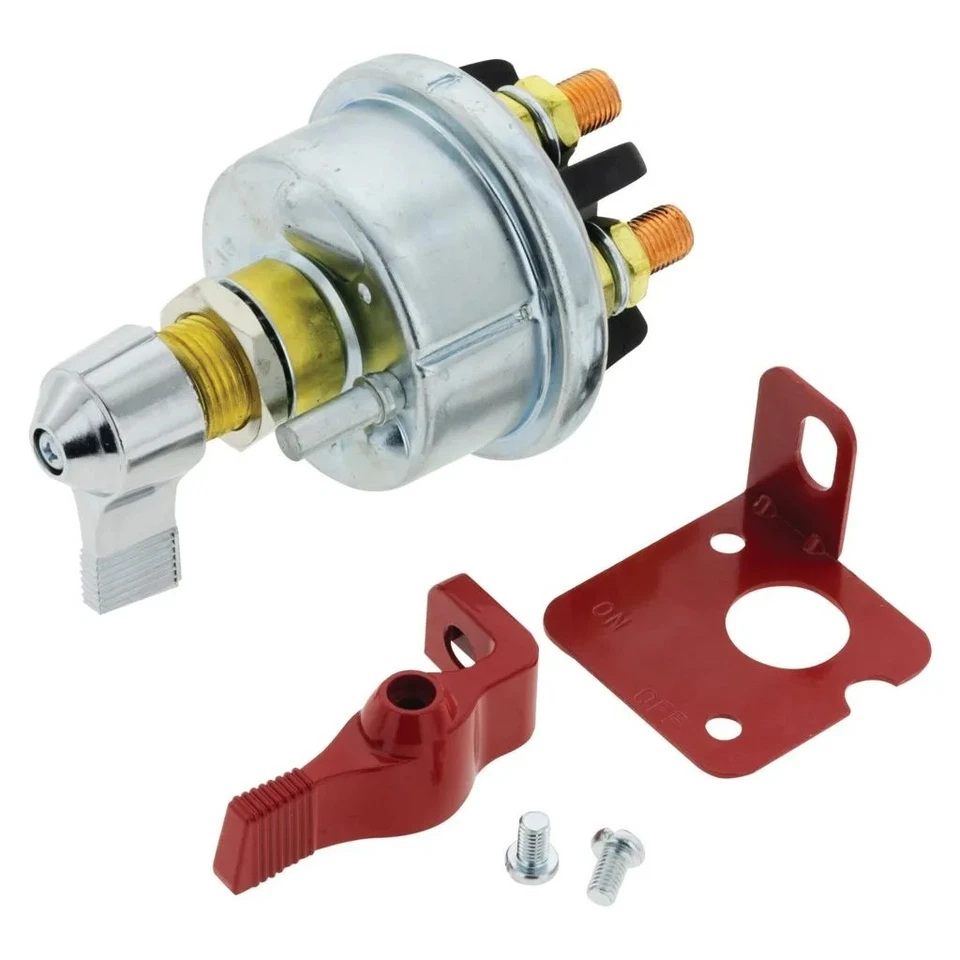

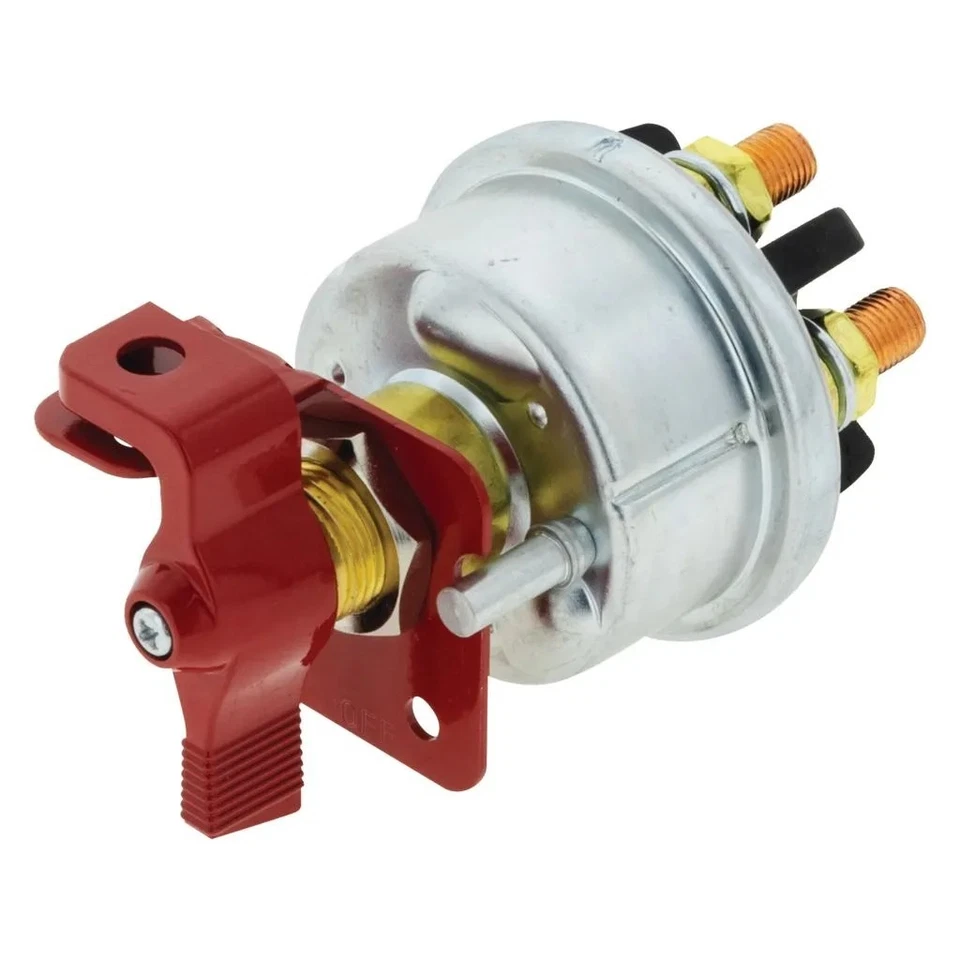

BATTERY MASTER SWITCH WITH RED LOCKOUT LEVER (KIT) COPPER

Part Number: SW6906RK

Additional Information

Jaylec Battery Master Switch 6 – 36 Volt

4 Pole Battery Terminal

2 Position – Off/On, Double Pole Single Throw, (DPST)

1000A Intermittent, 125A Continuous Rating on Battery Terminals

Chrome plated DieCast Alloy Lever Actuator, Brass Mounting Stem with weather resaistant Twin O-Ring seal

Copper Laminated Contacts and Plated Steel Casing with optional Lock Out Lever Kits available

Indexing Pins align switch and prevents rotation of housing

Specifications

Voltage: 6 – 36 VOLT
Amps: 1000

125A Continuous Rating on x4 Battery Terminals
Function: ON / OFF
Number of Terminals: 4
Number of Positions: 2
Contact Configuration: DPST
