ARB LED FOGLIGHT & INDICATOR REPLACEMENT

Part Number: QVBBAWS x2 & QVFLARBS x2

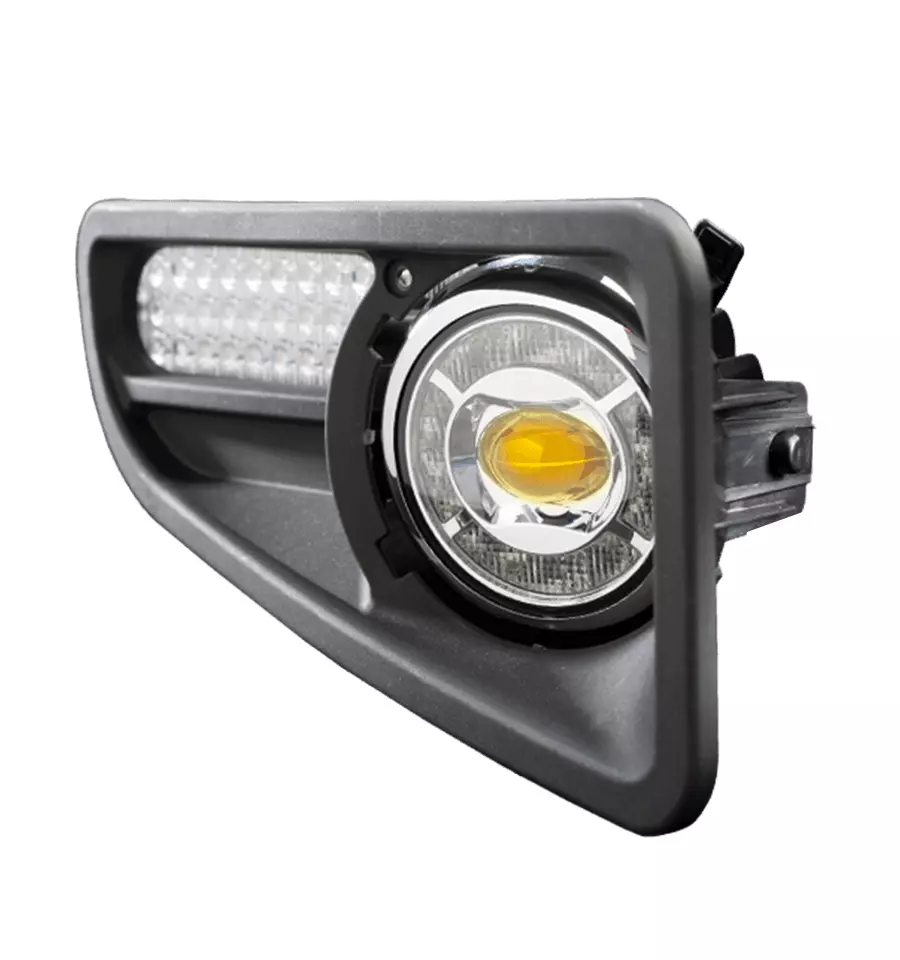

Listing is for x2 Indicator/Parker lights & FOG lights only, the black housing are NOT included, the image is only there to show how the indicator/parker lights mount up.

Rating Complies with Australian Standard AS 4177.4-2004

Product Description:

These LIGHTS has been specifically designed to suit the ever popular ARB Summit Bullbars.
Please note the fog lights do not fit the older arb bullbars, where the fog lights are round.

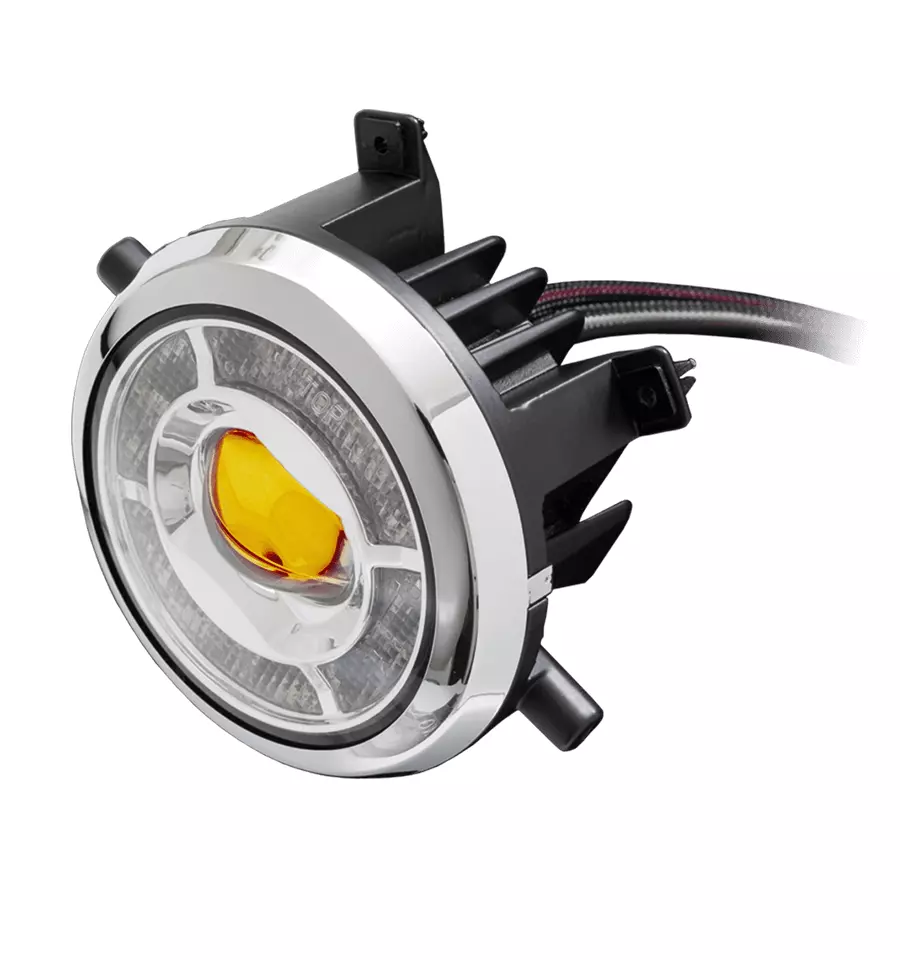

FOGLIGHT

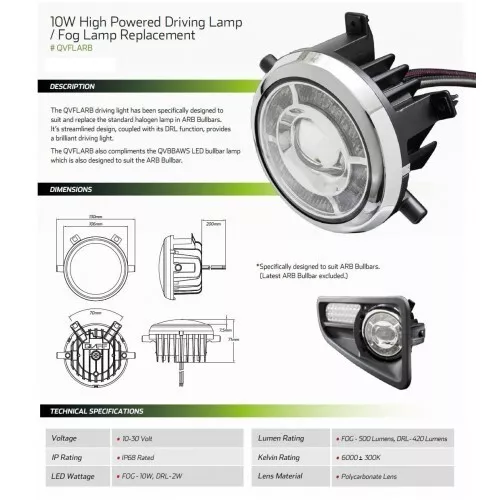

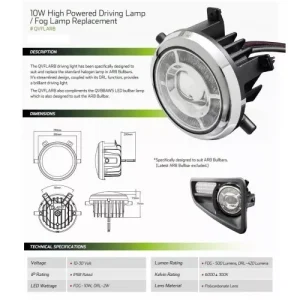

The QVFLARBS driving light has been specifically designed to suit and replace the standard halogen lamp in ARB Summit Bullbars.
It’s streamlined design, coupled with its DRL function, provides a brilliant driving light.
The QVFLARBS also compliments the QVBBAWS LED bullbar lamp which is also designed to suit the ARB Bullbar.

Voltage: 9-32 Volt
IP Rating: IP68 Rated (FULLY SUBMERSIBLE)
Kelvin Rating: 6000
Lumen rating: Fog 500L, DRL 420L
LED Count: 30 x High Powered LED’s
Lens: Polycarbonate Lens
Lens Protection: Clear Protective Polycarbonate Cover
Functionality: Foglight
Colour: White
Mounting: 2 Posts & 2 clips

Wiring:
Red = Day time running light or parker
Black = Ground

Brown = Foglight
White = Ground

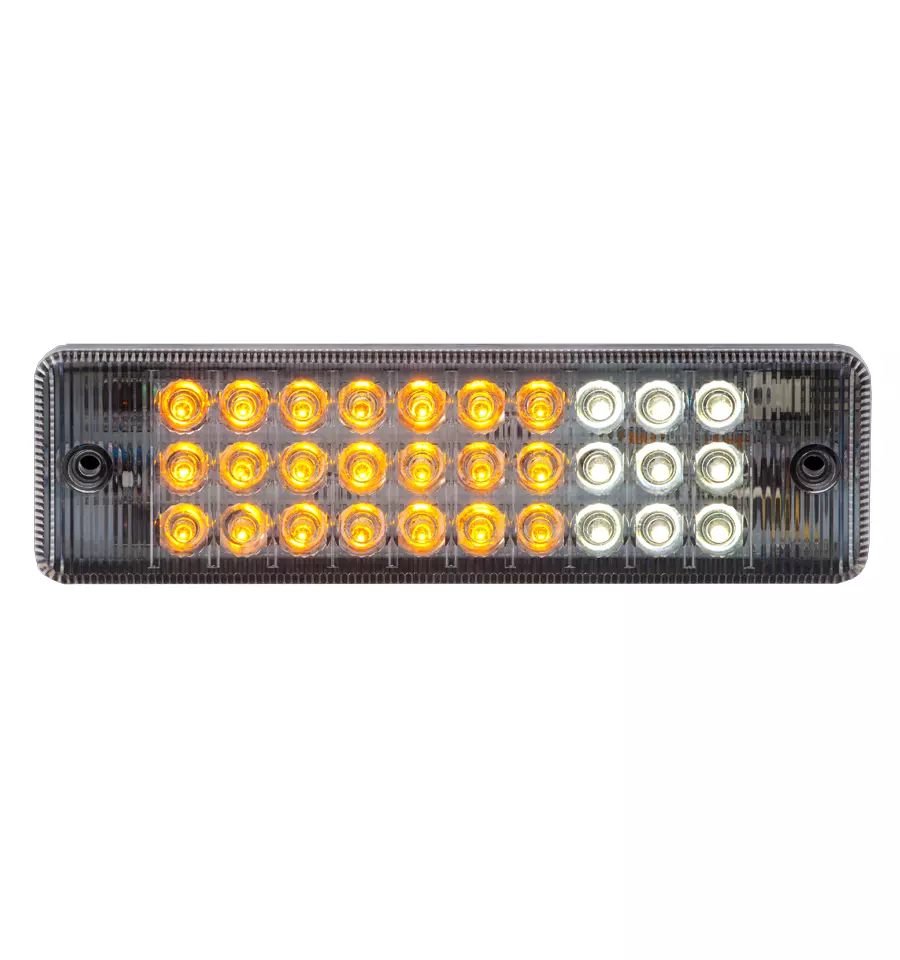

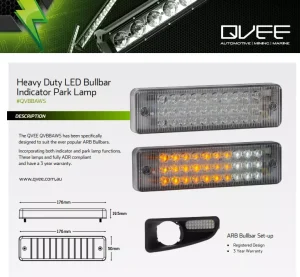

INDICATOR/PARK LIGHT

Incorporating both indicator and park lamp functions

Dimensions
L – 176mm
H – 50mm
D – 19.5mm
Screw whole spacing Centre to Centre 152mm

Wiring
White = Ground
Yellow = Indicator
Brown = Parker

Voltage: 9-32 Volt
IP Rating: IP68 Rated (FULLY SUBMERSIBLE)
LED Count: 30 x High Powered LED’s
Lens: Polycarbonate Lens
Lens Protection: Clear Protective Polycarbonate Cover
Functionality: Indicator & Park Light
Colour: Amber & White
Mounting: 2 Screw Mount

Please Note:

These lights will suit a large range of bullbars but not all, lense is clear until on please see image, we ask that you check dimensions and compare them with your mounting and hole size before purchasing.
Some vehicles may need a set of resistors for the indicator system; this stops the flashers going too fast.

Does not include Plastic black surround you use your factory arb surround
We can also offer install at extra cost

NOTE: These is a genuine quality product – Don’t settle for inferior products on the market

*All pictures shown are for illustration purposes only. The actual colours may vary from those shown depending on the device you are using to view the product or the angle of the item is photographed. Actual products may vary due to product enhancements or updates. The listing should be referred to for the description of the product, any questions should be asked prior to purchase.
