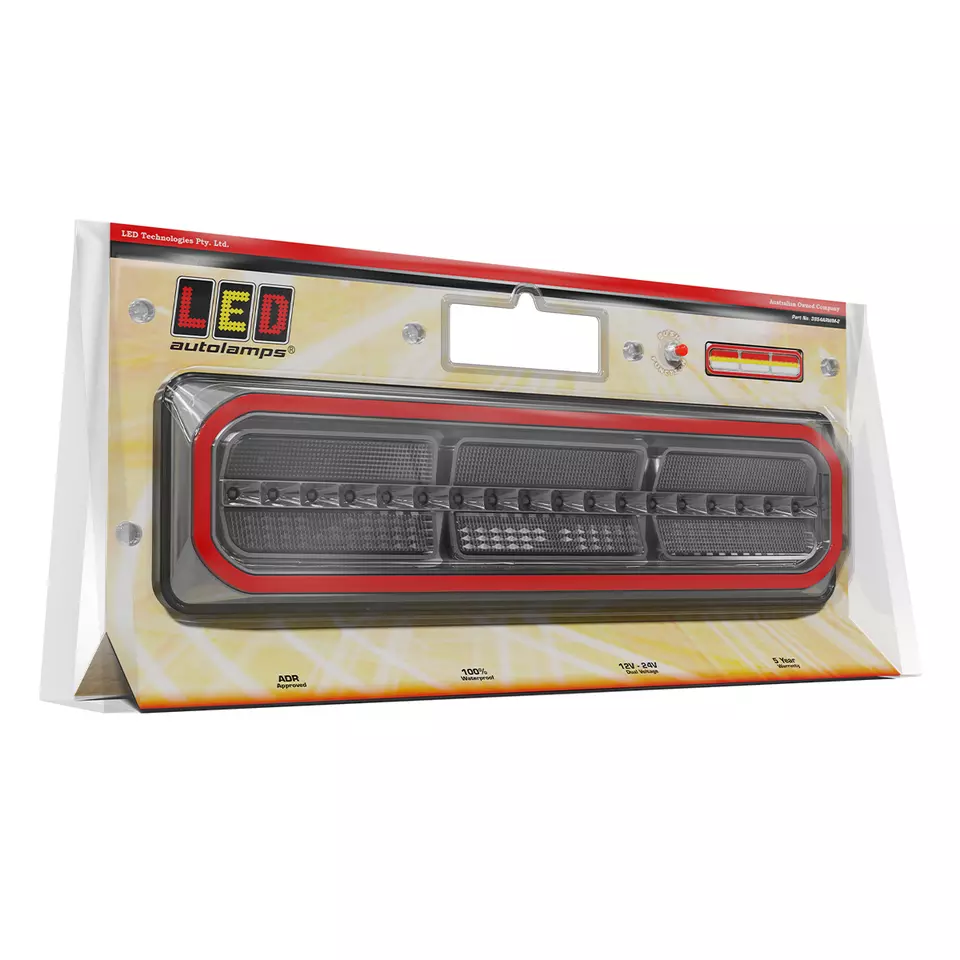

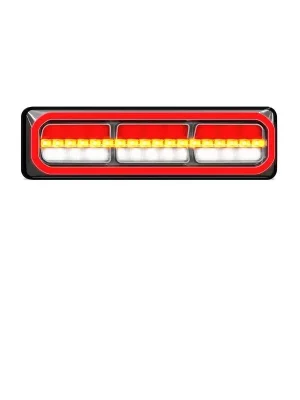

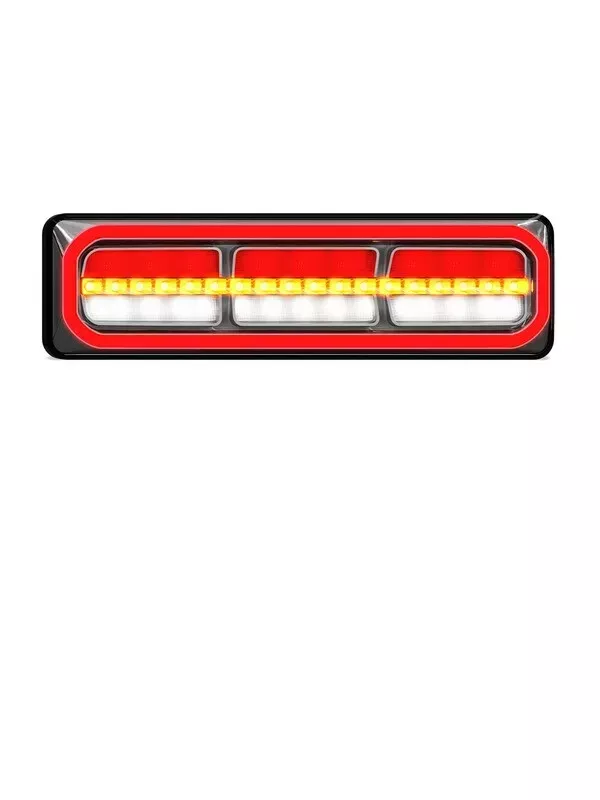

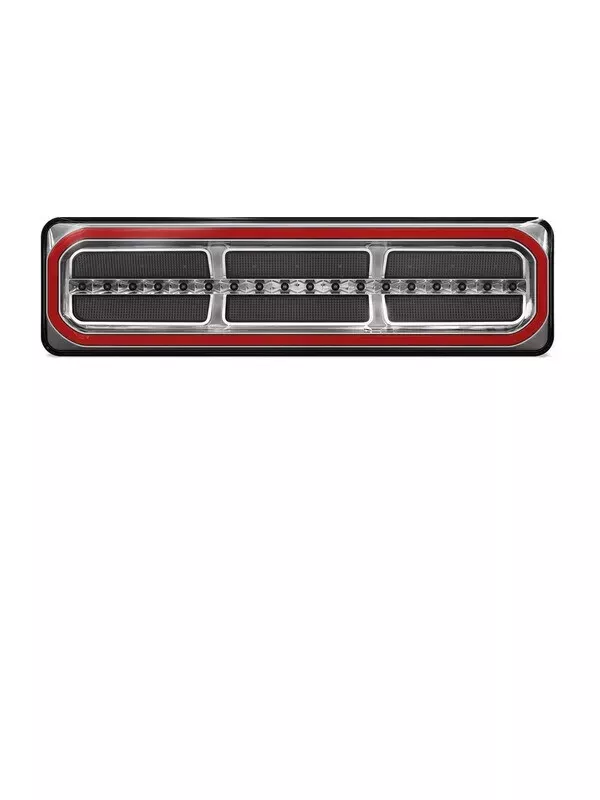

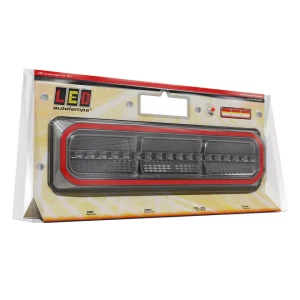

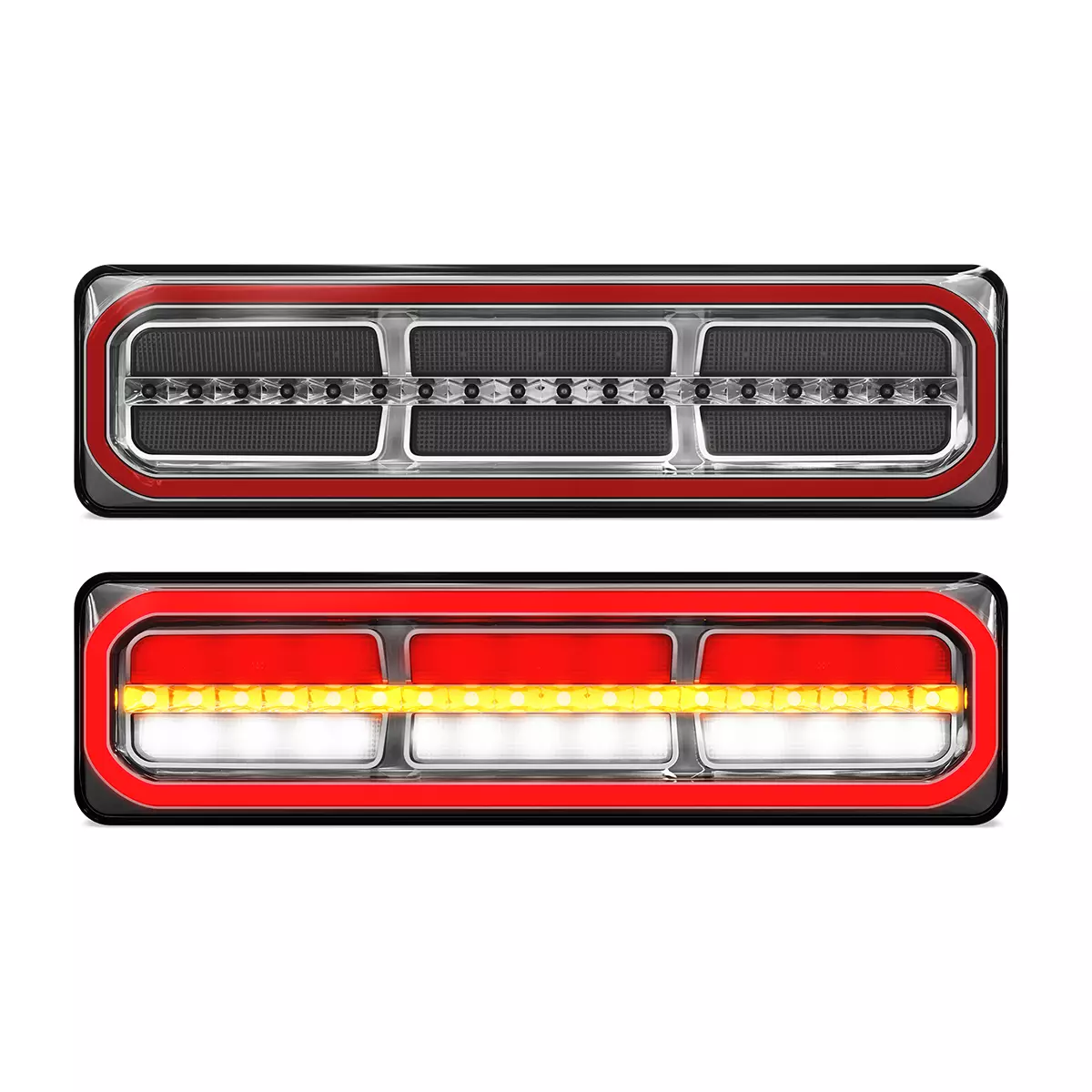

3854 Series Stop/Tail/Indicator/Reverse Lamp

LED Autolamps est product release, the 3854 Series Rear Combination Lamp. This all- light retains the same dimensions of the 385 series but with a and exciting face.

Features / Specifications

3854 Series Features

Please Note: This is for a Pair of lights.

• Diffused Tail Function
• Sequential Indicator
• ECE/ADR Approved
• IP67 100% Waterproof
• Voltage Range 12-24 Volt
• 387mm x 105mm x 30.5mm
• 5 Year Warranty

Fitting Instructions

Separate the base plate from the lamp and horizontally mount, onto a flat surface using screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in fixing surface then re-align the lamp and clip into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.

*All pictures shown are for illustration purposes only. The actual colours may vary from those shown depending on the device you are using to view the product or the angle of the item is photographed. Actual products may vary due to product enhancements or updates. The listing should be referred to for the description of the product, any questions should be asked prior to purchase.
