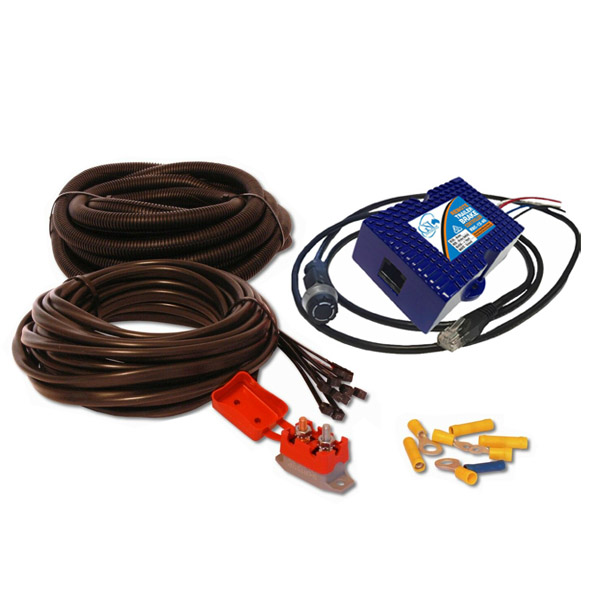

Remote Micro-Controlled Electronic Brake Controller RBC-12-NG plus Standard Wire Kit

This Kit Includes everything required to carry out a standard installation:

suits Tekonsha P3, IQ, Voyager, Redarc Towpro Elite & Classic, GSL RBC-12-NG

– x1 30 Amp Genuine Cole Hersee Circuit Breaker
– x1 Circuit Breaker Cover
– 8 Meters of 6mm Twin core Cable
– 5 Meters of 13mm Conduit
– x10 Cable Ties
– Crimp Terminals – 2x Large Ring, 2x Small Ring, 3x Large Joiners, 1x Medium Joiners
– Wiring Diagram (We are also available for technical phone support if need be!)

Features Include:

Convenient installation, control box can be mounted under dash.
New Generation Microprocessor Based
12v And 24v Versions Available
Open Circuit And Overload Indication
Easy Setup Via 2 Push Button Switches
Convenient Push Button
Compact And Rugged Aluminium Extrusion
2 Axel Capability

Product
Minimum Input Voltage: RBC-12 (9 VDC); RBC-24 (18 VDC)
Nominal Input Voltage: RBC-12 (12 VDC); RBC-24 (24 VDC)
Maximum Input Voltage: RBC-12 (15 VDC); RBC-24 (30 VDC)
Suitable For 12V Trailer Brakes: RBC-12 (Yes); RBC-24 (Yes)
No Current Load: RBC-12 (30 mA); RBC-24 (30 mA)
Maximum Load: RBC-12 (2 Axle /14A avg); RBC-24 (2 Axle /14A avg)
Weight: RBC-12 (200g); RBC-24 (200g)
Dimensions [LxWxH]: RBC-12 (40mm x 79mm x 81mm); RBC-24 (40mm x 79mm x 81mm)
