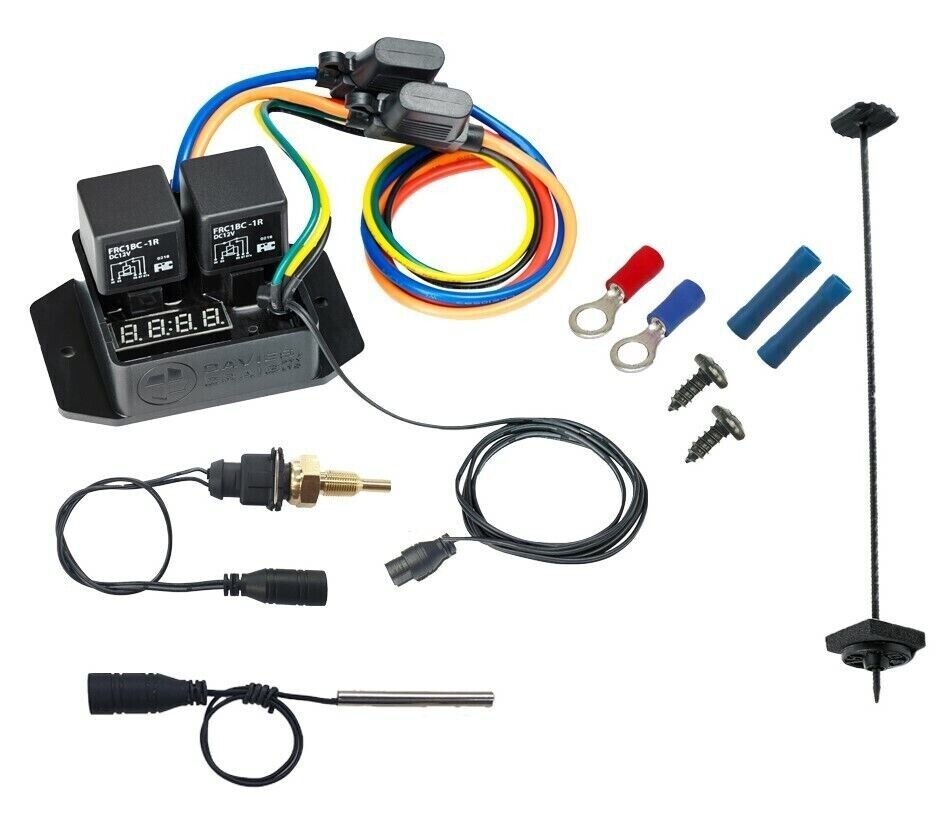

DIGITAL THERMATIC FAN SWITCH WITH ⅛” NPT THERMAL SENSOR KIT

PART NO: 0448

Davies Craig designed Digital Thermatic Fan Switch Kit can be used with Thermatic Fans, EWP’s and competitors Fans.

This kit comes with two sensors to enable various fitment options:

Sensor 1: Temperature Probe (Air or Coolant  Fitment)

Sensor 2: ⅛ NPT Thermal Sensor Kit (Coolant Fitment Only)

Sensor 1: It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can also be placed directly into the coolant system in combination with a Davies, Craig Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.

Sensor 2: The Thermal Sensor can be placed into the thermostat housing, engine block, or directly into the radiator. If you would like to install this sensor in the top radiator hose, It can also be used with Davies, Craig Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.

It can run 1 or 2 fans and be used for 12 or 24 volt applications. It has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can show Centigrade or Fahrenheit. Temp is set by pressing the set button.

• Fan #1 will start once the temperature reaches the set temperature.
• Fan #2 (if applicable) will start operation 10 seconds after fan #1 starts.
• The fan/s will operate until the temperature falls by 5°C below the set temperature.

Sensor Wire length:

• 142cm in total (Wire from switch 112cm plus sensor connector 30cm)
• Post 15-Dec-2021 = 320cm total (Wire from switch 290cm plus sensor connector 30cm)

*The sensor wire has been increased to 320cm from the 15-Dec-2021, batch date 2021

IP66 Rated:

• Protected from total dust ingress
• Protected from high pressure water jets from any direction, limited ingress protection
• Not waterproof

*Note: Kit sold in 12 volt configuration, for 24 volt application, you will need to change the two relays with 2 x 24 volt relays which are not supplied in the kit. We have 24 Volt relays listed on our store, part #0534

SPECIFICATION

• Max voltage: 12 to 27V (For 24V, relays need to be changed, not supplied in kit)
• Max current: 40A per Fan
• Relay setup: Dual relay
• Speed: Single speed, 10 second delay to start up the second fan
• Applications: Suitable for single and dual fan applications
• Screen Display: LED digital temp display, actual temp + set temp
• Temp Display: Centigrade or Fahrenheit
• Temp settings: 40°c to 110°c  (104°F to 230°F)
• Temp setting: Push Button
• Circuit type: Pre-programmed micro controller
• Output wires: Batt + Batt – IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
• Dimensions: 95x65x56 mm

*Note: if using this switch for use with and Electric Water Pump (EWP), it will not vary the speed of the pump in response to engine temperature but rather turn the pump on and off at your set temperature. For EWP control, Davies, Craig recommend the Digital Controller (Part 8002) which can manage both the EWP and your Thermatic Fans.
