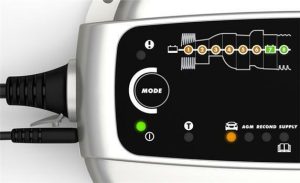

CTEK MXS 10 Battery Charger

Part Number: 56-823

The MXS 10 is a charger that offers state of the art technology. It is ideal for professional use and excellent in workshops, caravans, RVs, boats or cars. The MXS 10 is perfect for solving a broad range of battery problems. It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging and a temperature sensor for optimised charging regardless of the weather conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations. The unique display allows the user to follow the entire charging process.

The MXS 10 is fully automated 8-steps charger that delivers 10A to 12V batteries from 20-200Ah and is suitable for maintenance charging up to 300 Ah. The charger is IP 65 classified (splash and dust proof), designed to protect vehicle electronics and short-circuit proof. The MXS 10 is delivered with a 2-year warranty.

Volt: 12
Rated Voltage AC: 220-240VAC, 50-60Hz
Charging voltage: NORMAL: 14.4V, COLD/AGM 14.7V, RECOND: 15.8V, SUPPLY: 13.6V
Min battery voltage: 2.0V
Charging current: 10A max
Current mains: 1.0A rms (at full charging current)
Back current drain: <1Ah/month
Ripple: 4%
Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperature.
Charger type: 8 step, fully automatic charging cycle.
Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity: 20-200Ah up to 300Ah for maintenance
Dimensions: 197 x 93 x 49mm (L x W x H)
Insulation class: IP65
Weight: 0.8g
