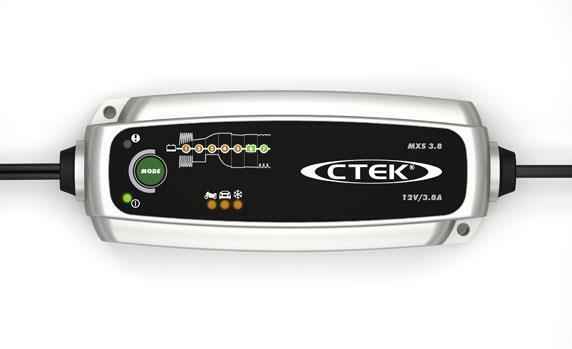

CTEK MXS3.8 Battery Charger

Part Number: 56-988

The MXS 3.8 is an advanced microprocessor controlled battery charger with patented Float/Pulse maintenance for use on batteries from 1.2Ah up to 85Ah. The MXS 3.8 solves a broad range of battery problems and is the ideal charger for everyday use. Features of the MXS 3.8 include diagnosis of battery condition to establish if it can receive and retain a charge, patented automatic desulphation programme and a special ‘Snowflake’ mode for optimum charging on cold winter days. Patented Float/Pulse maintenance mean the MXS 3.8 ideal for long-term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.

The MXS 3.8 is a fully automatic ‘connect and forget’ 12V charger with 7 charging steps and offers selectable 0.8A and 3.8A programs. This ‘Snowflake’ modes operate on the 3.8 programs. Wide charging range on all lead-acid battery types from 1.2Ah up to 80Ah with additional maintenance capability to 130Ah. Splash-proof and dustproof (IP65). The MXS 3.8 is easy and safe to use, protected and short-circuit proof. The MXS 3.8 features a 5-year warranty.

Rated Voltage AC: 220-240VAC, 50-60Hz
Charging voltage: SMALL NORMAL: 14.4V, COLD/AGM 14.7V
Min battery voltage: 2.0V
Charging current: 3.8A max
Current mains: 0.5A rms (at full charging current)
Back current drain: <1Ah/month
Ripple: 4%
Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperature.
Charger type: 7 step, fully automatic charging cycle.
Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity: 1.2-80Ah up to 130Ah for maintenance
Dimensions: 168 x 65 x 38mm (L x W x H)
Insulation class: IP65
Weight: 0.6g
