CTEK D250SE DUAL DC DC SOLAR BATTERY CHARGER 12V AGM LITHIUM+BATTERY SENSE MONITOR Pack

CTEK D250SE DUAL DC DC SOLAR BATTERY CHARGER 12V AGM LITHIUM+BATTERY SENSE MONITOR Pack

$550.00

Availability: 500 in stock

Product description CTEK D250SE

The latest from CTEK the D250SE leverages on the good foundation of the D250SA Dual but raises the stakes again by including a Lithium Charge profile to feature alongside its ignition feed and MPPT solar controller. A wider input voltage range on the alternator side for Euro 5+ engine for ECU controlled systems.

MPPT Solar input, alternator input with service battery charging from the solar or engine with a preference on the suns free energy. Not to mention the ability to add the SmartPass 120S or SmartPass 120 for an additional 120A charging output.

20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move

Features:

– 20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move
– Dual input (solar and alternator in parallel)
– Smart alternator compatible
– Selectable lithium* and lead-acid mode
– Solar panel regulator with Maximum Power Point Tracking (MPPT)
– Battery separation replacing diodes and VSR relays
– Selectable AGM option – 14.4V or 14.7V
– Maximised charging for better battery life and performance
– Temperature sensor to compensate for hot or cold conditions
– Compatible with SMARTPASS 120 for the ultimate 140A power management solution

Specifications:

– Ambient temperature: -20˚C to +50˚C (- 4°F to +122°F)
– Positioning: Permanent installation/on board
– Warranty: 2 years
– Input: 11.5-23V, 25A
– Output: 14.4V/14.7V, 20A max, lead-acid battery types. 14.2V, 20A max, LiFePO4.
– Back current drain*: Corresponding to less than 1Ah/month
– Battery types: 12V:, WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO₄
– Battery capacity: 40-300Ah
– MPPT: Yes
– Net weight (unit with cables): 0.7
– Gross weight (unit in box): 0.9
– Insulation class: IP65 (splash and dust proof)
– Ripple: Less than 4%
– Width: 110 mm
– Length: 192 mm
– Height: 65 mm



Battery Sense

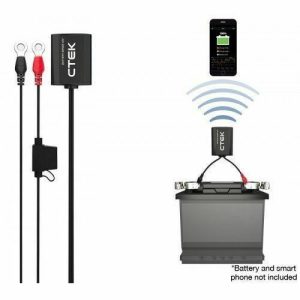

With CTX BATTERY SENSE, CTEK takes yet another pioneering step towards maximizing battery performance for its customers – once again bringing them the benefits of cutting edge technology. By keeping track of the battery’s health, the easy-to-use CTX BATTERY SENSE smart phone app and hardware will make life easier for vehicle owners worldwide.

The new CTX BATTERY SENSE app puts the control over the vehicle’s battery literally in the hands of its owner. No more worrying about charge levels or when to charge. Now, this information is available to CTEK customers in a simple-to-understand, convenient and precise, personalized interface. The app is easy-to-use and always available – right from their pocket.

Features:

Gives you realtime readouts of your battery status
Check your battery status anywhere from your phone
Connects to your smartphone via Bluetooth
Built in push notifications act as low voltage warnings
Works with 12V lead acid batteries
Works on android or iOS

The app is made for both Android and iOS platforms* and connects to a smart phone via Bluetooth®. The CTX BATTERY SENSE sensor hardware is compatible with all vehicles utilising 12V lead-acid batteries and there is no limit to the number of vehicles the smart phone app can watch over – the only limit is the smart phone’s memory. Once the simple set-up procedure is completed, the user has a practical overview of all connected vehicles’ batteries in real-time, 24/7.

One convenient feature is the automatic battery health notification. The app notifies the user via push notice if the charge level falls below 58% and it will also send a notice if there has been no update for more than a week. This enables the user to take swift, proactive action before falling victim to battery failure.

Compatible with:

  • Android OS 4.4 (or higher) and Bluetooth 4.0 hardware
  • iPhone iOS 7 (or higher) and Bluetooth 4.0 hardware
