Product Description

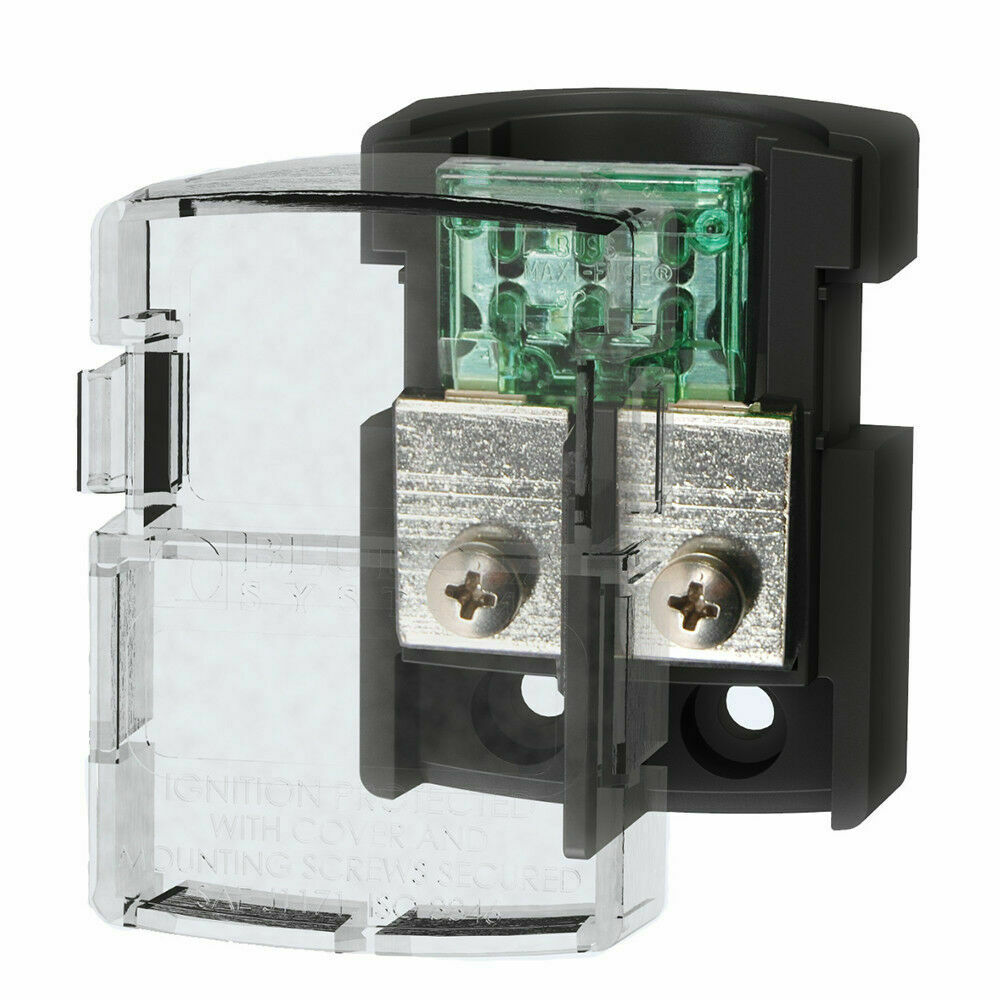

New Blue Sea Systems MAXI fuse block. Part number BS-5006100B (No fuses included)

Features

·Snap-on terminal cover insulates all conductive parts
·Cover breakouts allow wires from sides or bottom
·Terminal screws compress fuse blades within blocks for low resistance connections
·Ignition Protected
·Label recess accepts large format label
·Fuses sold separately

Specifications

·Maximum Amperage: 80A
·Maximum Voltage: 32V DC
·Mounting: #10 Screws
·Screw Terminal Torque: 25 in-lb (2.82 Nm)
·Wire Size: 14 – 4 AWG
·Weight: 0.25lb (0.11 kg)

*All pictures shown are for illustration purposes only. The actual colours may vary from those shown depending on the device you are using to view the product or the angle of the item is photographed. Actual products may vary due to product enhancements or updates. The listing should be referred to for the description of the product, any questions should be asked prior to purchase.
