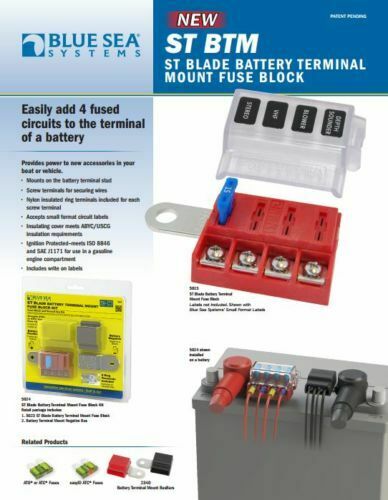

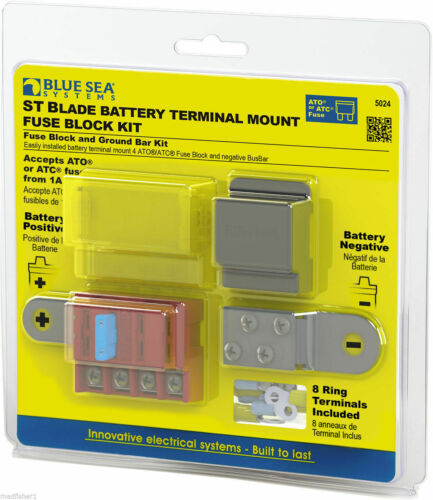

New Blue Sea 5024 Standard Blade Fuse Block Battery Terminal Mount with cover – 4 Circuits with Negative Bus.

Part Number: BS-5024

Compact ATO / ATC fuse block consolidates branch circuits and eliminates the tangle of inline fuses for electronics and other appliances.

Easily add 4 fused circuits to the terminal of a battery

Features:

A neat solution for wiring auxiliary power to and then being able to take off 4 fused separate circuits directly from the battery terminal. One power in rated at 100 Amp to 4 fuses power out rated at 30 Amp each.

Provides power to new accessories in your boat or vehicle.

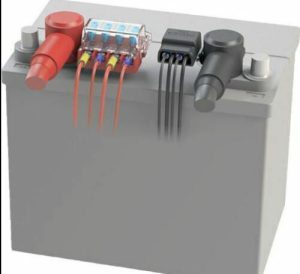

• Mounts on the battery terminal stud
• Screw terminals for securing wires
• Nylon insulated ring terminals included for each screw terminal
• Accepts small format circuit labels

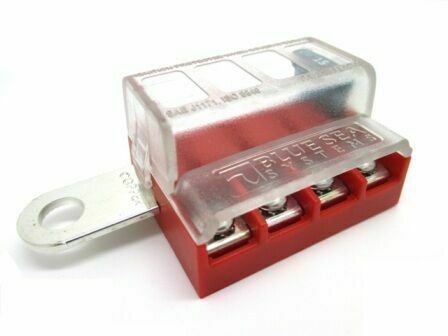

• Insulating cover meets ABYC/USCG insulation requirements
• Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Includes a 4-circuit negative busbar
• Includes write on labels

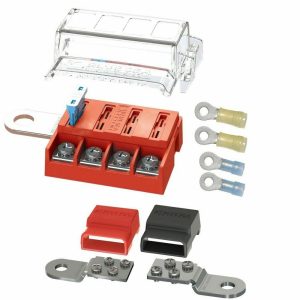

• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specifications

Circuits: 4
Maximum Amperage:100A per block
30A per circuit
Maximum Voltage: 32V DC
Bus Material: Tin-Plated Copper C11000

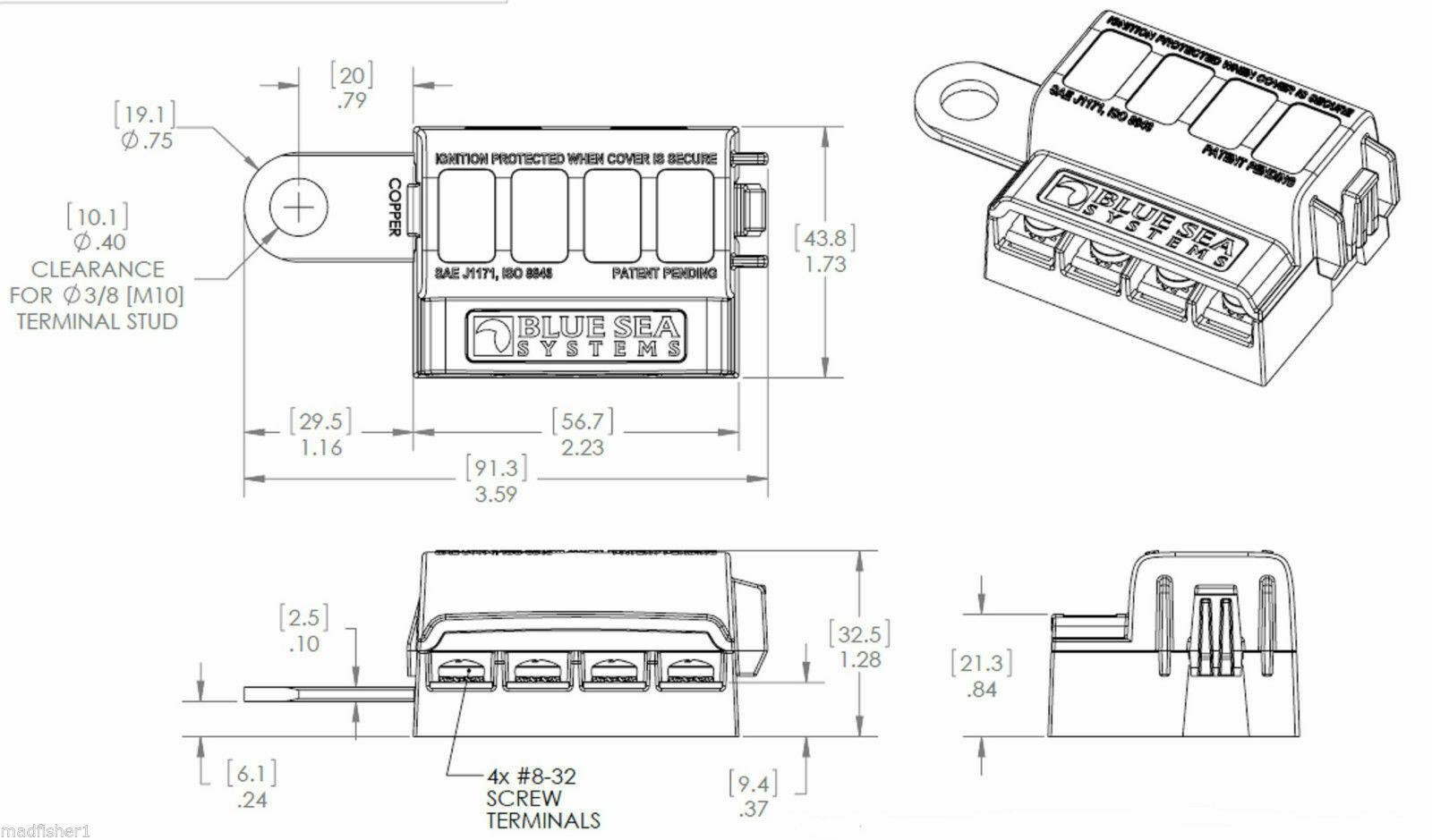

Mounting Hole: 3/8″ (M10) Stud
Screw Terminal Type
