BENDIX Ultimate Tow™ Electric Brake Controller – ULTTOW12V + DIY INSTALL KIT

Suits- new Ford Ranger, D-MAX, Navara or LandCruiser 300 series

Part Number: ULTTOW12V + STDKIT-5mm

For peace of mind and ultimate control, tow with the Bendix Ultimate Tow™ Electric Brake Controller. When the road ahead is all you can think about, place your trust in the Bendix Ultimate Tow™ Electric Brake Controller. The Ultimate Tow™ uses its own unique braking algorithm which provides total control, comfort, and reliability even in the toughest of Australian conditions.

Peace of mind and ultimate control

Modern 4WDs like the new Ranger, D-MAX, Navara or LandCruiser 300 series are equipped with advanced safety features like adaptive cruise control and autonomous emergency braking, and an electric brake controller can interfere with these important systems. Many popular brake controllers require additional expensive accessories in order to work with this technology but the Bendix Ultimate Tow™ Electric Brake Controller comes with everything you need to install in vehicles with this safety equipment. Fitted to your new car, this simple in line diode allows the Bendix Ultimate Tow™ Electric Brake Controller to work seamlessly and safely with these important safety features.

Not only that, once you’ve set up the Bendix Ultimate Tow™ Electric Brake Controller for your vehicle and trailer it’s ready to go, there is no need to adjust or configure the controller as you move from on road to off road conditions. The Ultimate Tow requires less input, less adjusting, and less thinking. Ultimate Tow™ is made for modern 4WDs, simple operation and great value from the brand you can trust in braking.

Why you should fit the Bendix Ultimate Tow™?

Fits Ford Ranger and other late model vehicles
Protection blocking diode included in kit
12V, full electronic control unit
Easy to install, multiple fitment options for remote head
Compact and rugged aluminium housing, mounts on any angle

Easy to install

Bendix’s remote head is compact and easy to install. With easy installation, your unit can be installed with just one hole, the remote head can fit in the smallest of knock out panels in your vehicle. It features a slim-line, OEM look with a built-in LED.

The Ultimate Tow™ allows you to adjust your braking force and operate the override function with ease. If you are worried about space behind the dash, Bendix has you covered, the Ultimate Tow™’s control module can be fitted up to 1.28m away from the remote head mounted in your dash. Mounting the control module is as simple as cable-tying it to a harness or mounting it with the screws provided.

Built for Australian conditions

Manufactured with a rugged cast alloy enclosure, the Ultimate Tow™ controller is dust and moisture resistant so that even in the harshest braking conditions heat is dissipated efficiently so you can keep going.

The true innovation lays within the operating systems of the Ultimate Tow™ controller. Designed, engineered, and tested in Australia for Australian driving conditions, it represents a quantum leap in brake control technology.

Worry-free towing

Your new Ultimate Tow™ controller comes fully programmed and tested from an Australian based facility. Boasting a 3-year warranty, you simply need to wire it up and hit the road, worry-free.

Kit Contents

1 x Bendix Ultimate Tow™ Electric Brake Controller
1 x Control dial
1 x Control dial lead
1 x Fuse holder assembly
2 x Self-tapping mounting screws
2 x Nylon fabric fastening hook and loop straps
1 x Decal sheet (with 4 dash decal sizes)
1 x Instruction manual
1 x Protection blocking diode
1 x Double-sided adhesive EVA foam mounting pad (78 × 61mm)
1 x 15A blade fuse

Features

Benefits

EASY INSTALL

• With easy installation, your unit can be installed with just one hole.

COMPACT REMOTE HEAD

• The remote head can fit in the smallest of knock-out panels in your vehicle.

OEM-STYLE DIAL WITH BUILT-IN LED

• Slim-line, OEM look with a built-in LED.

EASY TO USE

• Set the Ultimate Tow™ up once and it’s ready to go, on or off road.

PROTECTION BLOCKING DIODE

• The diode doesn’t affect any of your modern features and comes included in the kit.

OPEN CIRCUIT AND TRAILER DISCONNECTION INDICATOR

• The Ultimate Tow™ allows you to adjust your braking force and operate the override function with ease, all in one controller.

COMPACT & RUGGED ALUMINIUM CASE FOR HEAT DISSIPATION

• Manufactured with a rugged cast alloy enclosure, the Ultimate Tow™ controller is dust and moisture resistant so that even in the harshest braking conditions heat is dissipated efficiently so you can keep going.

3-YEAR WARRANTY

• Simply wire it up and hit the road, worry free.

ALKO ESC COMPATIBLE

Brake with confidence knowing your Ultimate Tow™ is ALKO ESC compatible.

Wiring Kit for Electric Brake Controller

This kit contains everything you require to carry out a professional installation of your new electric brake controller. It contains the same quality components that we use for brake controller installations in our workshop.

Kit includes:

8 metres of 5mm twin core wire Genuine Aussie Made Tycab Red/Blue

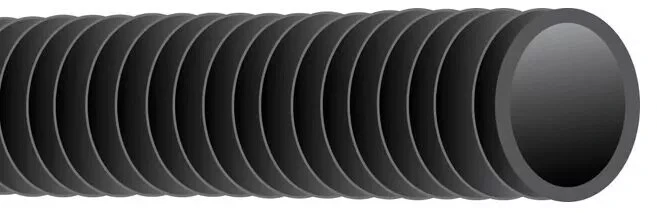

5 metres of 13mm split loom conduit to protect your wiring

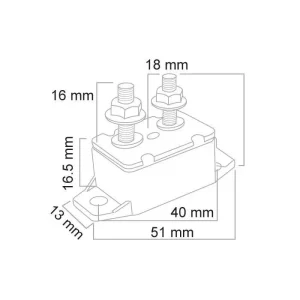

30 amp auto reset circuit breaker
Circuit breaker protective cover
10x cable ties
Crimp terminals – 2 x small ring, 2 x large ring, 3 x large joiner, 1 x medium joiner
Fitting Instructions
