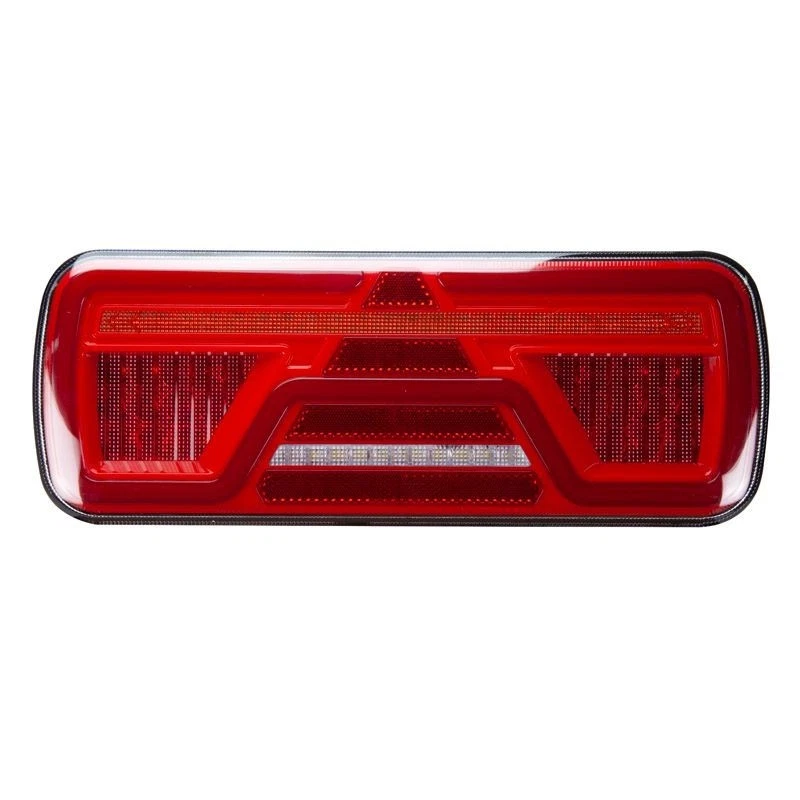

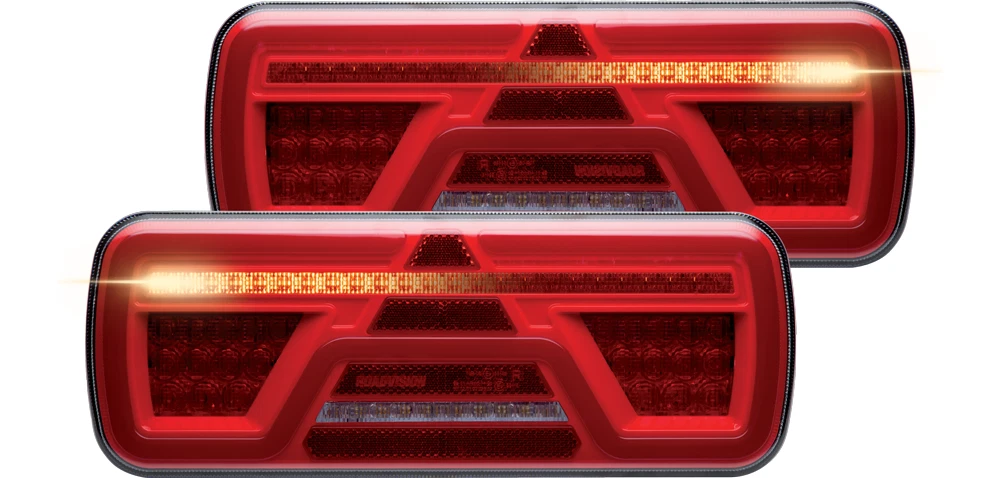

Roadvision BR360 Series Combination LED Tail Lights – Sequential Indicator (PAIR)

Part Number: BR360LARW & BR360RARW

IMPORTANT – SOLD AS A PAIR (LEFT & RIGHT)

Due to the sequential indicator design, these lights are side-specific.

Each kit includes:

• 1 x LEFT-hand lamp
• 1 x RIGHT-hand lamp

You must use one of each for correct sequential operation.

Product Description

The Roadvision BR360 Series is a premium, all-in-one fit-and-forget LED combination lamp designed for trailers, caravans, canopies, and custom builds.

Featuring stop, tail, reverse, fog, retro reflector and sequential indicator functions in one compact unit, the BR360 delivers modern styling, improved visibility, and long-term reliability — even in harsh Australian conditions.

With durable polycarbonate construction, IP67 dust and water protection, and ADR approval across all functions, these lights are built to work and built to last.

Functions

• Stop
• Tail
• Sequential Indicator
• Reverse
• Fog
• Retro Reflector
• Glow Park Lamp

Key Features

• Sequential indicator technology
• Multi-volt 10–30V DC
• Low current draw
• 100,000 hour rated LED lifespan
• Durable polycarbonate lens & housing
• Simple surface-mount design
• ADR / ECE approved for all functions
• Fully sealed IP67 – dust & water proof
• Maintenance-free design

Specifications

• Part Numbers: BR360LARW (Left) & BR360RARW (Right)
• Voltage Input: 10–30V DC
• Number of LEDs: 24 total
• Stop: 12 LEDs
• Tail: 60 LEDs
• Reverse: 10 LEDs
• Fog: 12 LEDs
• Current Draw @ 13.8V:
• Indicator: 0.2A
• Stop/Tail: 0.2 / 0.3A
• Reverse: 0.3A
• Fog: 0.4A

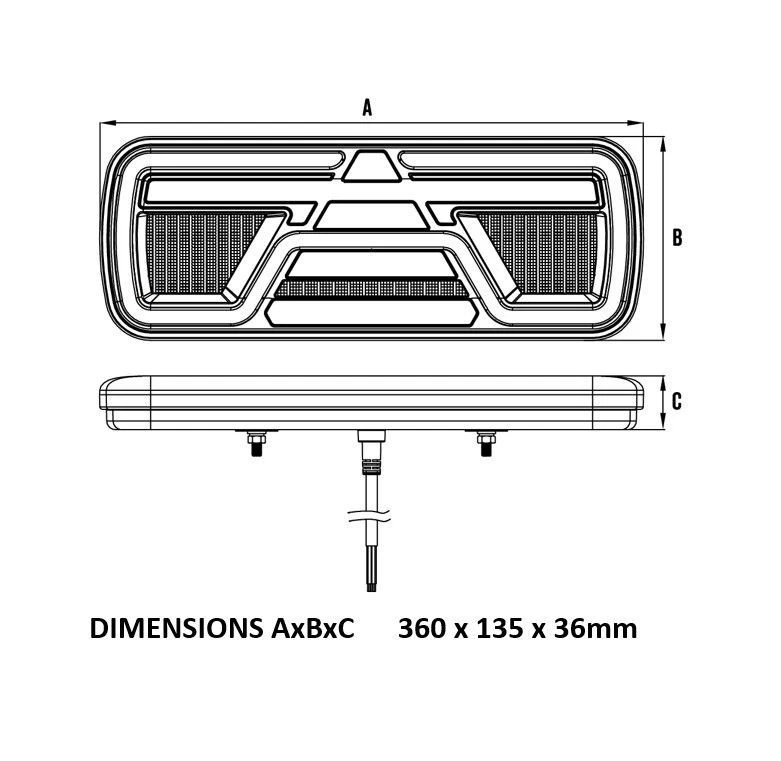

• Dimensions (L x H x D): 360 × 135 × 36 mm
• Mounting Hole Centres: 152 mm stud centres
• Cable Length: 300 mm (sheathed)
• Lens Construction: Polycarbonate
• Housing Construction: Polycarbonate

Wiring Colour Codes

• Earth – Black
• Stop – Red / Blue
• Tail – Green
• Indicator – Green / Brown
• Reverse – Green / Violet
• Fog – Red

ADR Approvals

• Indicator – E9-6R01/28-22818-00
• Stop/Tail – E9-7R02/27-22818-00
• Reverse – E9-23R00/22-22818-00
• Reflector – E9-3R02/17-22818-00
• Fog – E9-38R00/19-22818-00

What’s Included

• 1 x LEFT BR360 Combination Lamp
• 1 x RIGHT BR360 Combination Lamp

 (Sold as a matched pair only)

Notes

When fitting to  a vehicle fitted with a BCM (Body Control Module), such as a Ford Ranger, sequential indicators may not operate correctly if fitted to a caravan or trailer.

If you’re unsure about compatibility, feel free to contact us before purchasing.
