PRODUCT DESCRIPTION

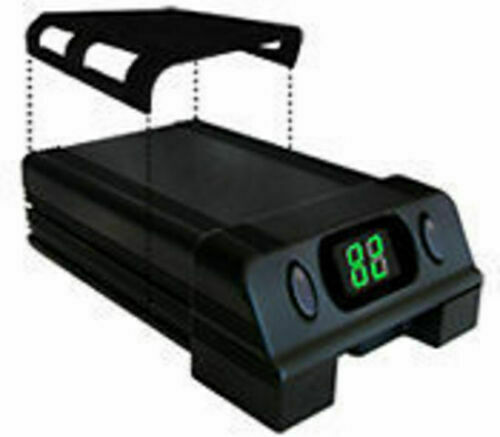

GSL 24 VOLT ELECTRIC BRAKE CONTROLLER MODEL EBC-24 Australian made

Takes the 24 volt vehicle and allows a 12 volt trailer brake system to be connected without the need for a voltage reducer.

 FEATURES:
• New Generation Microprocessor Based
• Digital Display For Accurate Setup
• Open Circuit And Overload Indication
• Easy Setup Via 2 Push Button Switches
• Convenient Override Slide Knob
• 3 Ramp Up Levels For Brake Speed Actuation
• Compact And Rugged Aluminium Extrusion

SPECIFICATIONS:

Minimum Input Voltage: 18 VDC
Nominal Input Voltage: 24 VDC
Maximum Input Voltage: 30 VDC
Suitable For 12V Trailer Brakes: Yes
No Current Load: 30 mA
Maximum Load: 2 Axle /14A avg
Weight: 270g
Dimensions [LxWxH]: 40mm x 80mm x 125mm
