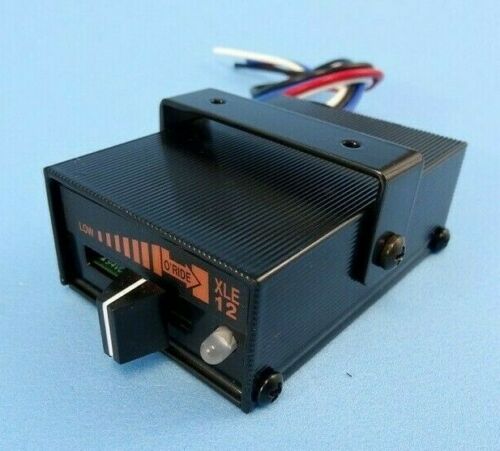

The XLE12 GLS Electronics is a compact sized electronic brake controller, suited to be mounted in any position. Operation is reliable even on the roughest of roads. Brake pressure is adjusted via a sliding control knob.

FEATURES

• Compact size design for easy installation
• Operates reliably even on roughest roads
• Adjustable brake pressure via control knob
• Suitable for single axle trailers
• Easy connection, only four wires
• Light weight aluminium heat sink construction
• Can be mounted in any position
• LED status indicator
• XLE-12 Suitable for 1 or 2 Axles

SPECIFICATIONS

Minimum Operating Voltage: 12V DC
Nominal Operating Voltage: 13.2V DC
Maximum Operating Voltage: 14.5V DC
No Load Currents (Brakes “Off”): 8mA
Maximum Load Current: 4.3 Amps
Weight: 174g
Dimensions L x W x H: 95mm x 58mm x 30mm
